Light Switch

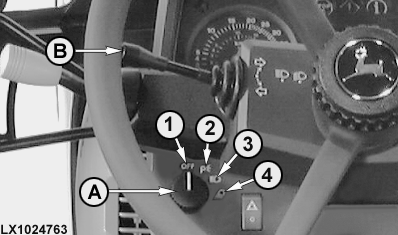

Light switch (A) can be set to the following positions:

  • 1 = Light switch in "off" position
  • 2 = Headlights and warning lights "on"
  • 3 = Headlights "on"
  • 4 = Headlights and work lights "on"

Switch headlights to "high beam" or "low beam" position by means of switch (B).

  • Switch down = High beam
  • Switch in center = Low beam
  • Pull switch up = Flash to pass

Indicator light (C) on dashboard will glow when light switch is in "high beam" position.

LX1024763
L102655


A-Light Switch
B-High/Low Beam Switch
C-High Beam Indicator

OU1092A,0000009 -19-15JAN04-1/1
