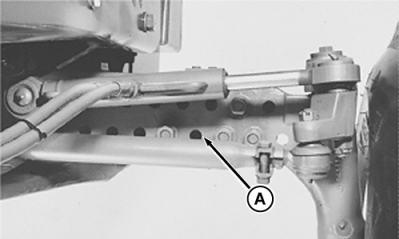

Two-Wheel Drive Front Axle Tread Settings - StandardAdjustable front axle (A) has seven standard tread settings. |
|
| Tire Size | Valve Stem Location | Axle Hole Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-16 | Out | 1515 mm (59.5 in.) | 1615 mm (63.5 in.) | 1715 mm (67.5 in.) | 1820 mm (71.5 in.) | 1920 mm (75.5 in.) | 2020 mm (79.5 in.) | 2125 mm (83.5 in.) |
| In | 1615 mm (63.5 in.) | 1715 mm (67.5 in.) | 1820 mm (71.5 in.) | 1920 mm (75.5 in.) | 2020 mm (79.5 in.) | 2125 mm (83.5 in.) | 2225 mm (87.5 in.) | |
| 14L-16.1 | Out | 1565 mm (61.5 in.) | 1665 mm (65.5 in.) | 1770 mm (69.5 in.) | 1870 mm (73.5 in.) | 1970 mm (77.5 in.) | 2075 mm (81.5 in.) | 2175 mm (85.5 in.) |
| 11.00-20 | Out | 1510 mm (59.3 in.) | 1610 mm (63.3 in.) | 1710 mm (67.3 in.) | 1815 mm (71.3 in.) | 1915 mm (75.3 in.) | 2015 mm (79.3 in.) | 2115 mm (83.3 in.) |
| In | 1610 mm (63.3 in.) | 1710 mm (67.3 in.) | 1815 mm (71.3 in.) | 1915 mm (75.3 in.) | 2015 mm (79.3 in.) | 2115 mm (83.3 in.) | 2215 mm (87.3 in.) | |
OU1092A,0000017 -19-06MAY04-1/1 |
