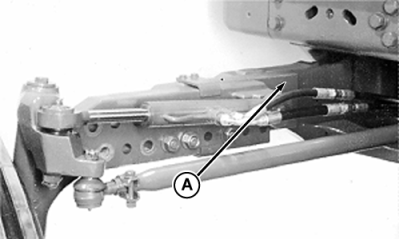

Two-Wheel Drive Front Axle Tread Settings - With ExtensionsAdjustable front axle (A) has seven tread settings with extensions. |
|
| Tire Size | Valve Stem Location | Axle Hole Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-16 | Out | 1960 mm (77.0 in.) | 2060 mm (81.0 in.) | 2160 mm (85.0 in.) | 2265 mm (89.0 in.) | 2365 mm (93.0 in.) | 2465 mm (97.0 in.) | 2570 mm (101.0 in.) |
| 14L-16.1 | Out | 2010 mm (79.0 in.) | 2110 mm (83.0 in.) | 2210 mm (87.0 in.) | 2315 mm (91.0 in.) | 2415 mm (95.0 in.) | 2515 mm (99.0 in.) | 2620 mm (103.0 in.) |
| 11.00-20 | Out | 1950 mm (76.8 in.) | 2050 mm (80.8 in.) | 2150 mm (84.8 in.) | 2255 mm (88.8 in.) | 2355 mm (92.8 in.) | 2455 mm (96.8 in.) | 2555 mm (100.8 in.) |
