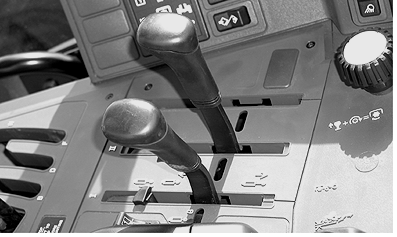

Levers for Mechanical Selective Control Valves

The control lever has four settings.

The remote cylinder retracts when lever is moved to the Retract position (A).
The remote cylinder extends when the lever is moved to Extend position (B).
The remote cylinder is held in place when the lever is in Neutral (C).
When the lever is in Float position (D) (all the way forward past detent), implement follows ground contours. Float lockout levers are provided.

NOTE: If additional external valves are used, move control lever to neutral when shutting off each hydraulic function.

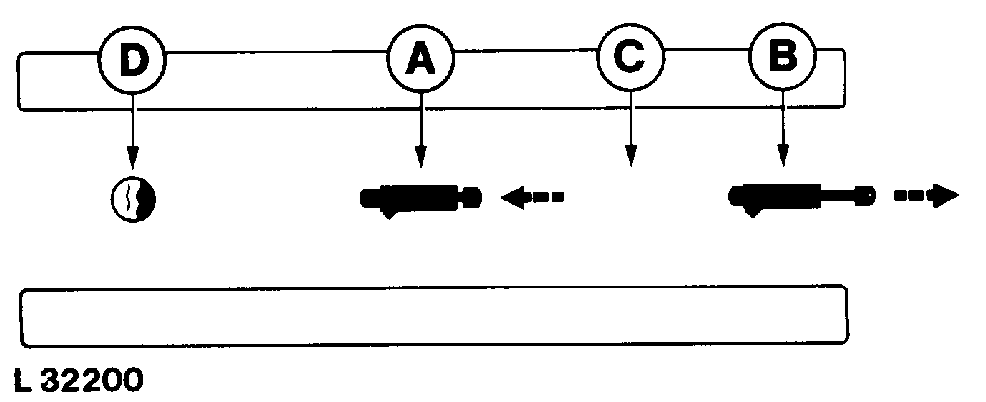

A-Retract
B-Extend
C-Neutral Position
D-Float Position

OU1092A,000001C -19-31AUG04-1/1
