Rate of Cylinder Operation

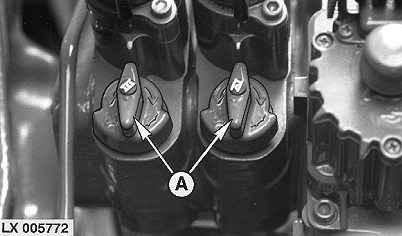

The raise/lower speed can be adjusted using flow control valves (A).

IMPORTANT: Full extension and retraction of a remote cylinder should require at least 1.5 seconds. Faster speeds may cause damage.

A-Control Valves

OU1092A,0000020 -19-15JAN04-1/1
