Power-Beyond Couplers

Implements that have a Load Sense connector, the optional Power-Beyond couplers should be used.

When couplers are not used, use the protective dust caps to keep dust and dirt out of couplers.

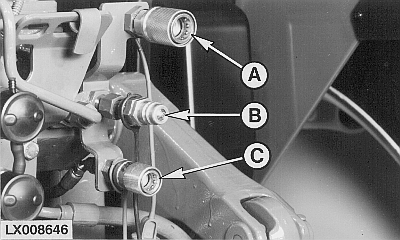

A-Pressure Connector
B-Return Connector
C-Load Sense Connector

OU1092A,0000024 -19-15JAN04-1/1
