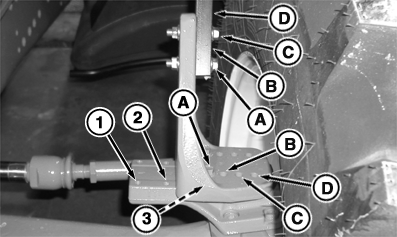

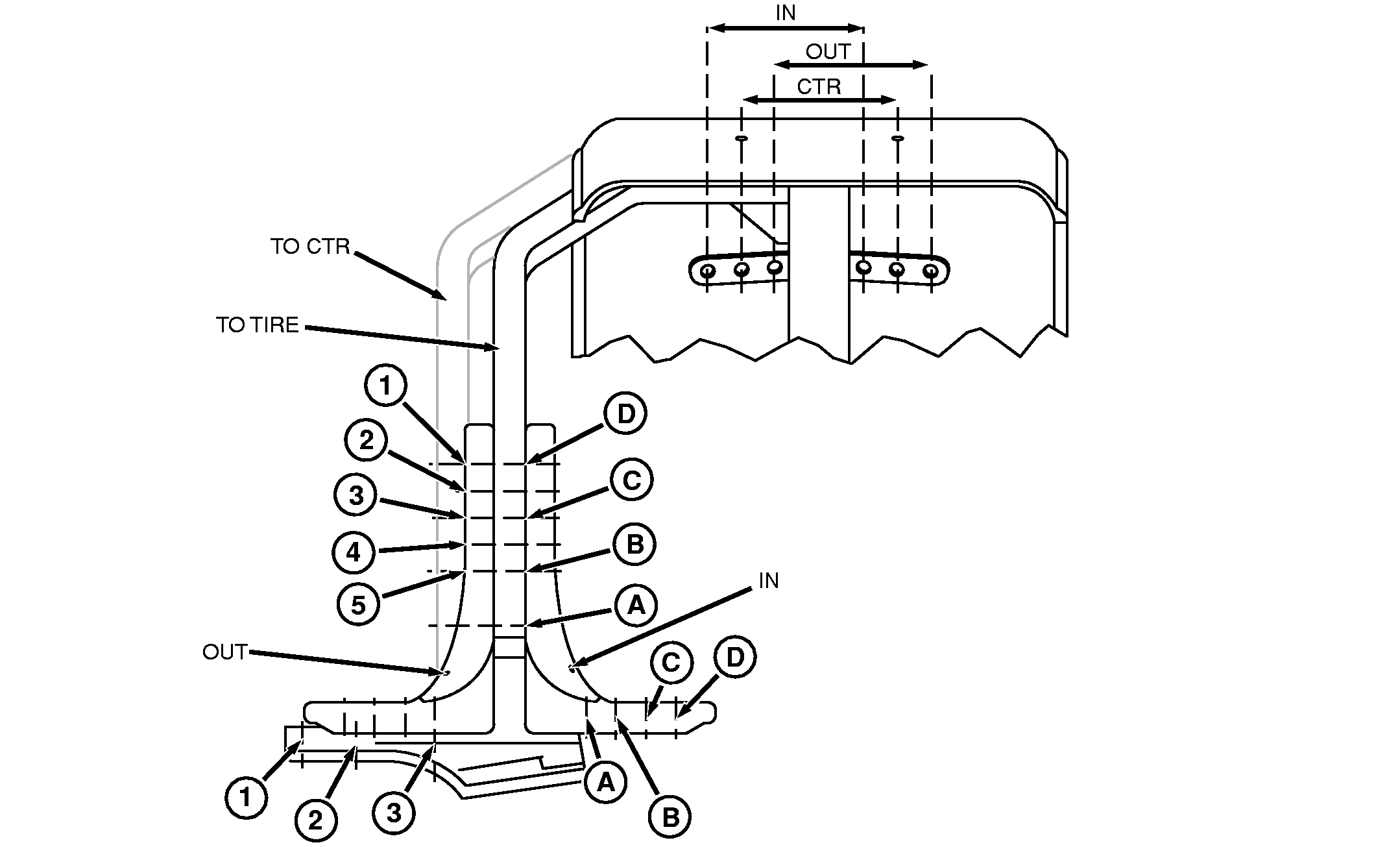

Height Adjustment Example - (See Fender Settings - 14.9R28, 60 in. Tread Setting) A3-B1 - align the lower hole (A) of fender and hole (3) of fender bracket. Align hole (B) of fender with hole 1 of fender bracket. Width Adjustment Example - (See Fender Settings - 14.9R28, 60 in. Tread Setting) B-1 In - align hole (B) on fender bracket with hole (1) on lower bracket. When selecting "inside" or "outside", switch brackets from one side of the tractor to the other, so that brackets slant toward rear of tractor. NOTE: Tractors with loaders may have different fender settings. Refer to loader operation manual.

MFWD Fender Adjustment (Late Models)

OU1092A,0000029 -19-16JAN04-1/1
