Check Engine Oil Level

If oil level is below the cross-hatch area on the dipstick, add enough oil to bring the level up into cross-hatch. Avoid overfilling.

Do not start engine if oil level is below cross-hatch area on the dipstick.

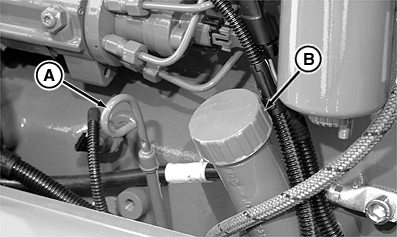

A-Dipstick
B-Oil Filler Cap

RXA0070285
FD000047

OU1092A,0000039 -19-16JAN04-1/1
