Check Transmission/Hydraulic Oil Level

OU1092A,000003A -19-16JAN04-1/2

IMPORTANT: Check level with cold oil, preferably after tractor has been standing overnight.

2. Lower rear hitch and front-mounted implements (if equipped).

3. 7220 and 7320 Tractors

Unscrew dipstick (A), remove it and wipe it clean.

4. Screw-in dipstick fully, remove it and check oil level. Oil level should be between marks on the dipstick. Add oil at filler neck as necessary.

5. 7420 and 7520

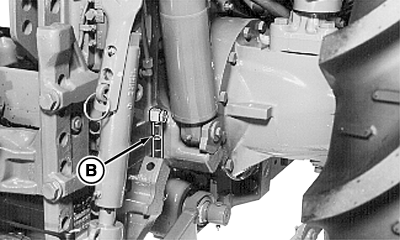

Oil level should be between the marks on sight glass (B). Add oil at oil filler neck, as necessary.

A-Dipstick
B-Sight Glass

OU1092A,000003A -19-16JAN04-2/2
