Lubricate MFWD Axle and Drive Shaft

IMPORTANT: Service every ten hours of operation when working under very wet and muddy conditions.

Lubricate the grease fittings on the front axle and drive shaft using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.

NOTE: The number and position of grease fittings varies depending on axle type.

LX004993

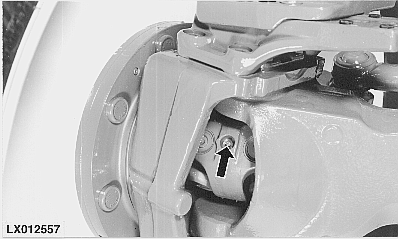

LX012557
LX1019666
LX1019667
LX1019668

OU1092A,000003B -19-16JAN04-1/1
