OMAR224650: 7220, 7320, 7420 and 7520 Tractors, Block File: OU1092A_000003D_19

Change IVT Transmission/Hydraulic Oil Filter

NOTE: Replace IVT transmission/hydraulic system filter element after the first 100 hours of operation. Then replace after the first 500 hours of operation, and every 500 hours thereafter.

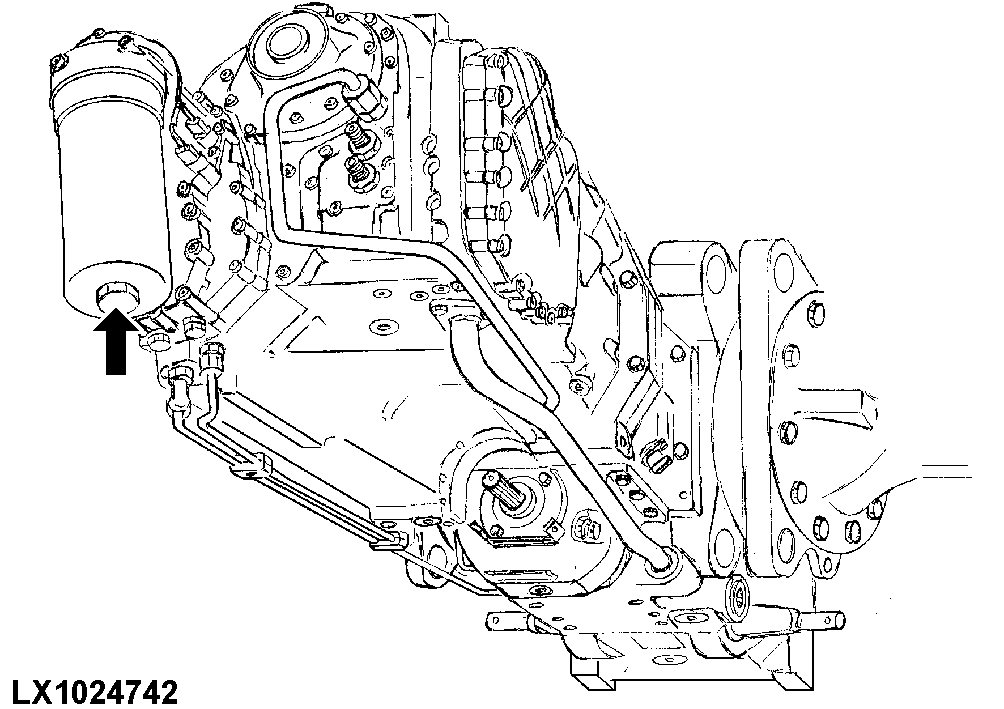

1. Unscrew filter element.

2. Coat sealing rings of new filter element with grease or oil and screw-in filter element.

Use only original John Deere filter elements.

OU1092A,000003D -19-16JAN04-1/1
