Lubricate Rear Axle Bearings

IMPORTANT: Service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate both bearings with six to eight strokes of John Deere multipurpose grease.

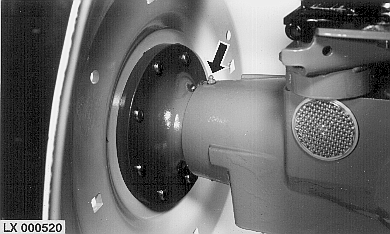

LX000520

OU1092A,000003E -19-16JAN04-1/1
