Change MFWD Wheel Hub Oil

1. Turn wheel until drain plug (A) is at the bottom. Remove plug and drain oil into a suitable container.

2. Turn wheel another quarter turn so that drain plug hole is back to horizontal and add oil. Oil should be level with plug bore.

3. Reinstall drain plug and tighten to 150 N·m (110 lb-ft) on 7220 and 7320 tractors and to 120 N·m (90 lb-ft) on 7420 and 7520 tractors.

For capacities, see Specifications section.

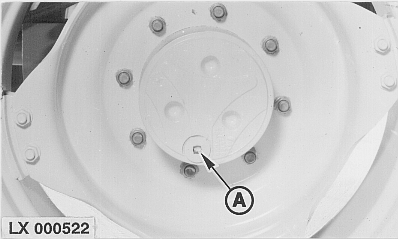

LX000522


A-Drain Plug

OU1092A,0000041 -19-16JAN04-1/1
