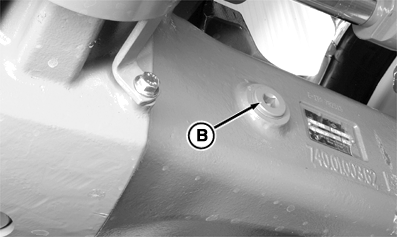

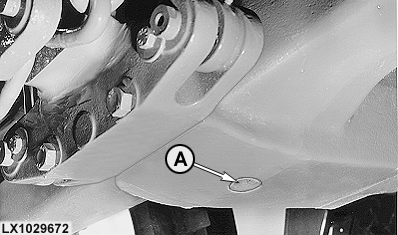

Change MFWD Axle Housing Oil1. Remove drain plug (A) and drain oil into a suitable container.2. Reinstall drain plug and tighten to 150 N·m (110 lb-ft). 3. Remove oil level/filler plug (B). Add oil. The oil level must be up to lip of filler neck. For capacities, see Specifications section. NOTE: Location of screws varies depending on axle type.
|
|
OU1092A,0000042 -19-16JAN04-1/1 |
