Using Instructional Seat-If Equipped

Press locking catch (A).


A-Locking Catch
B-Pin

LX1033609

OU1092A,0000093 -19-11MAY05-1/4

causym CAUTION: Instructional seat is provided only for training operators or diagnosing machine problems. Keep all other riders off the tractor and equipment. Always wear your seat belt.

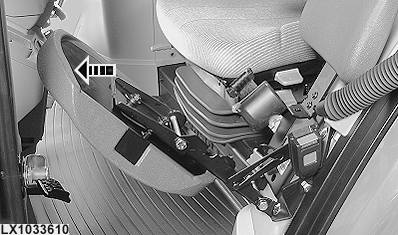

Tip seat forward.

LX1033610

OU1092A,0000093 -19-11MAY05-2/4

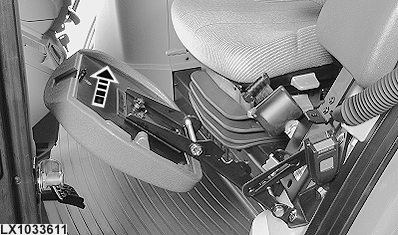

Turn seat through 90°.

LX1033611

OU1092A,0000093 -19-11MAY05-3/4

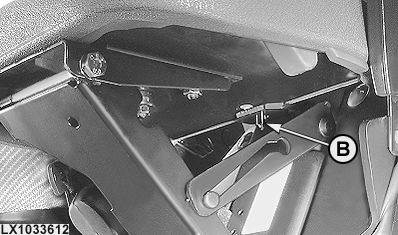

Tip seat back. Make sure that pin (B) engages in its hole properly.

LX1033612

OU1092A,0000093 -19-11MAY05-4/4
