Installing QUIK-TATCH™ Front Weights

causym CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

causym CAUTION: Weights are heavy. Use proper lifting technique and/or appropriate lifting equipment.

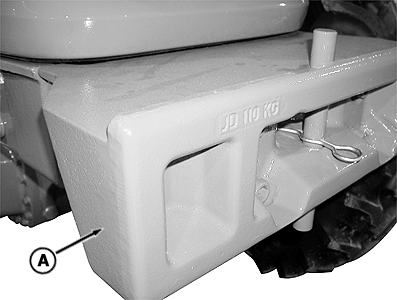

Front weight support (A) weighs 110 kg (243 lb). Individual QUIK-TATCH front weights weigh 47 kg (104 lb) each.

Up to 18 QUIK-TATCH weights can be installed on front weight support.

Weights must be installed in pairs, balanced on either side of support center pin.

RXA0074569


A-Front Weight Support
B-Retaining Bolt
C-Bolt Retainer

QUIK-TATCH is a trademark of Deere & Company

OU1092A,0000099 -19-04MAY04-1/3

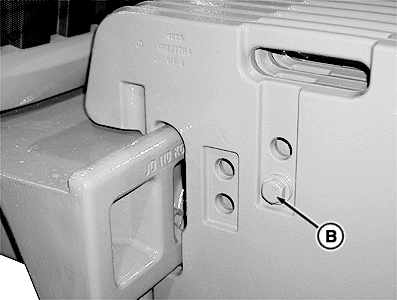

1. To install up to six additional weights, insert two appropriate length retaining bolts (B) through holes in opposite direction and secure with nuts. Tighten to specification.

Specification

Retaining Bolt Nut -Torque 230 N·m (170 lb-ft)

RXA0074571

OU1092A,0000099 -19-04MAY04-2/3

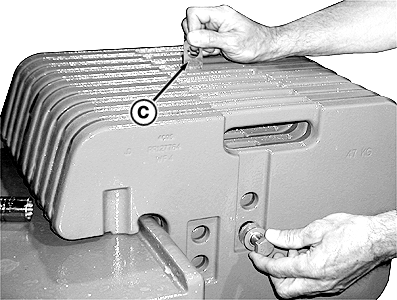

2. To install eight or more additional weights, up to maximum allowed, insert retainers (C) between weights, one with threaded hole on top and the other with threaded hole on bottom. Secure with nuts and tighten to specification.

RXA0074573
