Mounting Fenders on Tractors with Front Loader

To make sure fenders will clear front loader frame during operation, install right-side fender on left-side tire and vice-versa. Adjust fenders as needed.

OU1092A,000009C -19-04MAY04-1/3

RXA0074561

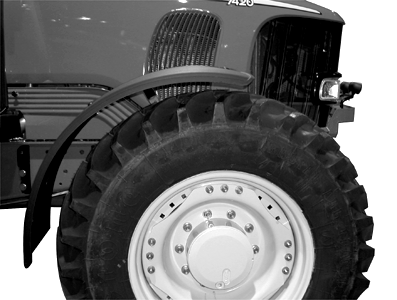

Fender mounted -- no front loader

OU1092A,000009C -19-04MAY04-2/3

RXA0074563

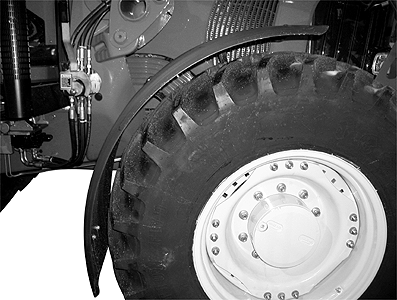

Fender mounted -- with front loader

OU1092A,000009C -19-04MAY04-3/3
