Manual Park Brake Release- IVT

causym CAUTION: Avoid personal injury. Perform manual park brake release procedure only when tractor needs to be towed and park brake cannot be released normally.

The reverse drive lever must be in the corner Park position to manually release the park brake. The tractor must never be operated (even for short test drives) when park brake is manually released. After towing, the manual park brake release cable must be reconnected.

1. Fold back the cup holder (A).

2. Remove mounting screws (B) and take out trim (C).

LX1025204


A-Cup Holder
B-Screws
C-Trim

OU1092A,00000B2 -19-21SEP04-1/7

3. Take plug (A) out of the threaded bore.


A-Plug

LX1026882

OU1092A,00000B2 -19-21SEP04-2/7

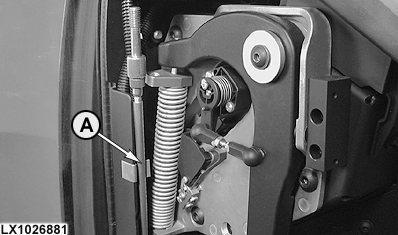

4. Disconnect cable (A) from clamp.


A-Cable

LX1026881

OU1092A,00000B2 -19-21SEP04-3/7

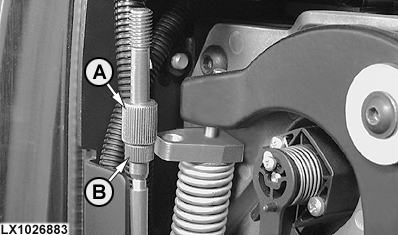

5. Unscrew threaded stud (A) and knurled nut (B).


A-Stud
B-Nut

LX1026883

OU1092A,00000B2 -19-21SEP04-4/7

6. Slightly depress clutch pedal.

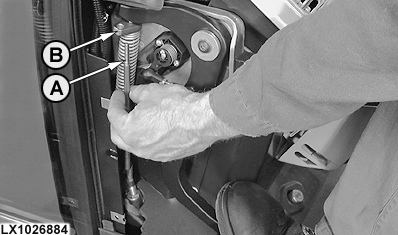

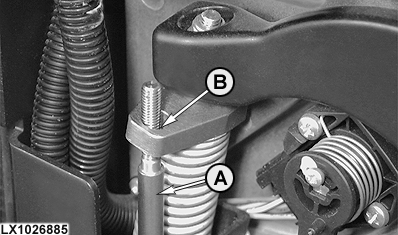

7. Thread cable (A) through eye (B) on the clutch pedal adapter.


A-Cable
B-Eye

LX1026884
LX1026885

OU1092A,00000B2 -19-21SEP04-5/7

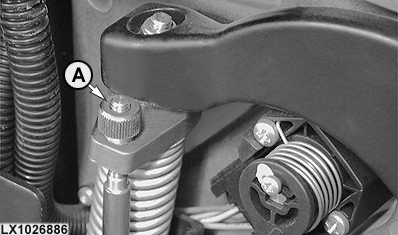

8. Adjust cable with knurled nut (A) until all slack is removed. Knurled section must be uppermost.

IMPORTANT: The cable must be tight in order to assure complete release of the park brake.


A-Nut

LX1026886

OU1092A,00000B2 -19-21SEP04-6/7

9. Fully depress clutch pedal.

IMPORTANT: If the clutch pedal cannot be depressed to the stop and the threaded stud cannot be adjusted further, unscrew the knurled nut until the clutch pedal can be depressed against its stop.

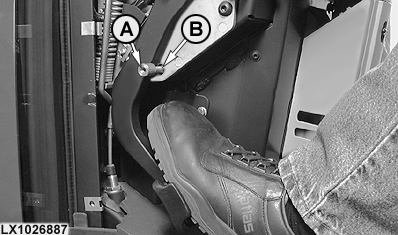

10. Screw threaded stud (A) into opening (B) in order to secure the clutch in this position and maintain the park brake in the released position.


A-Stud
B-Opening

LX1026887

OU1092A,00000B2 -19-21SEP04-7/7
