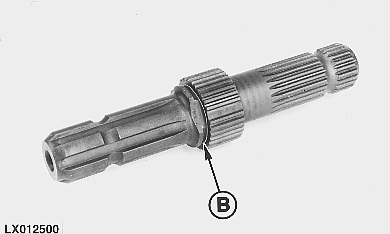

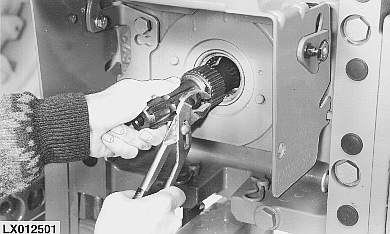

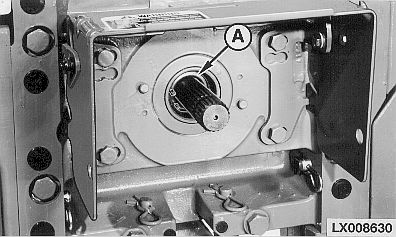

Reversing Rear PTO ShaftsOne end of the 540 rpm stub shaft has 6 splines for operating at 540 rpm, and the other end has 21 splines for operating at 1000 rpm. Clean stub shaft thoroughly before installing. 1. Remove snap ring (A) and pull out stub shaft.2. Clean stub shaft thoroughly and coat it with grease. Groove (B) facilitates installation of snap ring. 3. Insert stub shaft in PTO housing until snap ring fits into groove. When inserting 21 spline shaft, you will be pushing against spring pressure. It will be necessary to push in on shaft while twisting it in order to move shaft in far enough to install the snap ring. 4. Install snap ring.
|
|
