Center Link Adjustment

Length of center link can be adjusted by means of adjusting handle (A). Lift up adjusting handle and turn it until the required length is achieved.

Length (B) must be between 530 mm (20.9 in.) and 725 mm (28.5 in.) on 7220 and 7320 tractors and between 587 mm (23.1 in.) and 782 mm (30.8 in.) on 7420 and 7520 tractors.

Do not deviate from the specified dimensions. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.

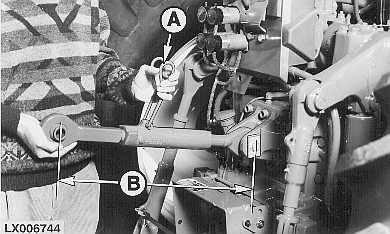

A-Handle
B-Center Link Length
