Using Auxiliary Heaters-If Equipped

causym CAUTION: Avoid electrical shock or fire. Use 3-wire, heavy duty electrical cord with 15-amp rating (14 gauge) minimum, suitable for outdoor use. Always plug electrical cord into 110-volt outlet protected with ground fault interrupter.

Two Cold Weather Packages are available from your John Deere Dealer.

Auxiliary Heater Package, including:
  • Engine Coolant Heater
  • Hydraulic Charge Pump Heater
  • Transmission Heater
Premium Cold Weather Package, including:
  • Engine Coolant Heater
  • Hydraulic Charge Pump Heater
  • Transmission Heater
  • Fuel Heater
  • Rear Window Defroster

OURX986,0000020 -19-11MAY05-1/2

IMPORTANT: Ground fault interrupter protects tractor only, and does not protect electrical wiring supplying power to tractor. Test all ground fault interrupters before use.

Auxiliary heaters are used to aid starting in cold weather. At ambient temperature of -15° C (5° F), coolant heating process requires about 2 hours. Extend heating period if ambient temperature is lower.

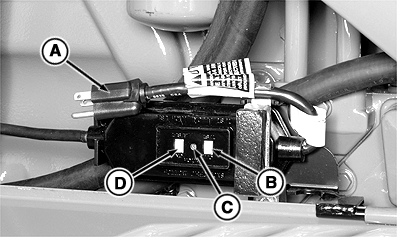

A-Plug
B-Test Button
C-Indicator Light
D-Reset Button

RXA0062414

OURX986,0000020 -19-11MAY05-2/2
