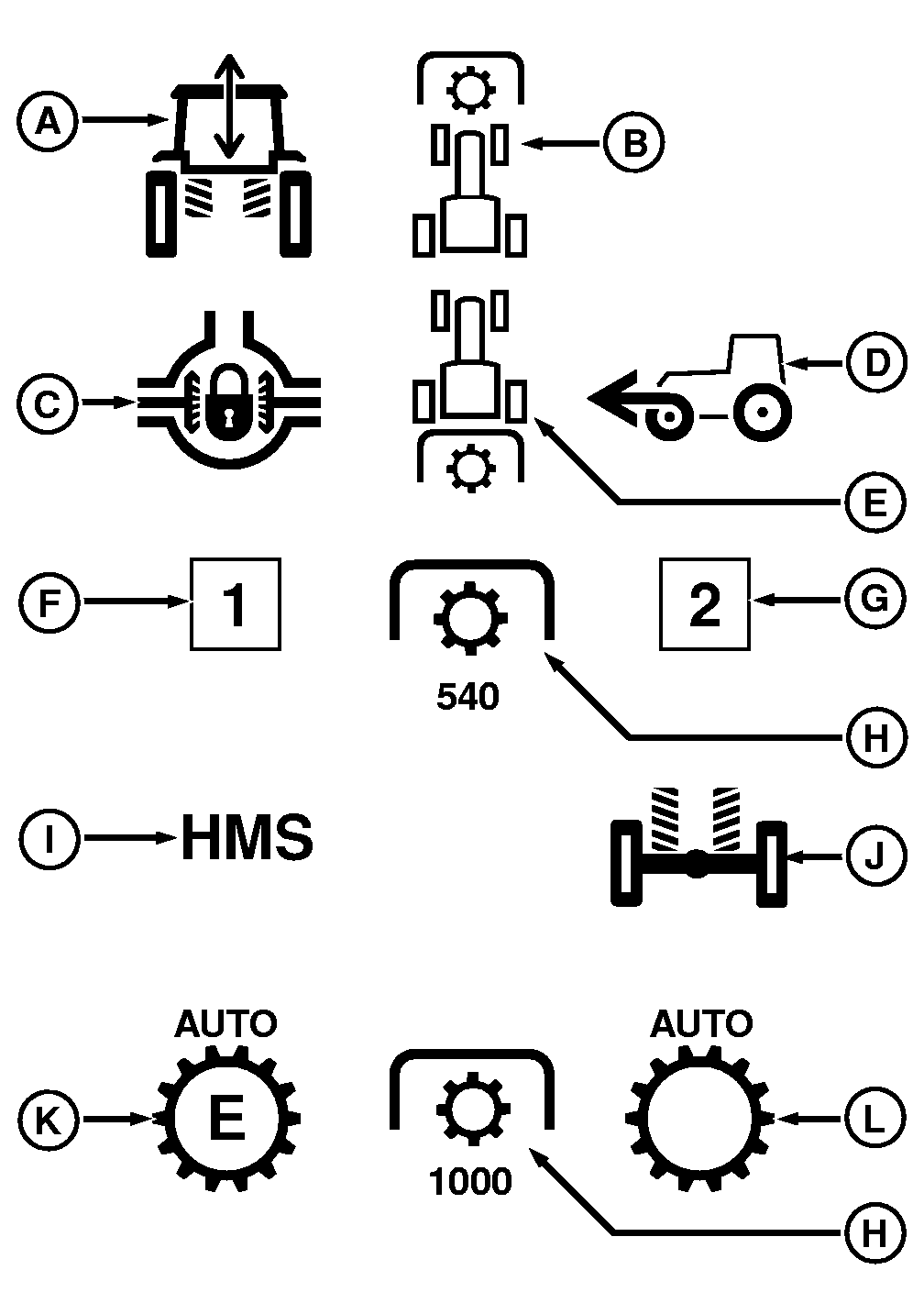

Additional Indicator LightsLight (A) flashes to indicate a fault in the cab suspension. Drive with extra care! Light (B) comes on when the front PTO is engaged. Light (C) comes on when differential lock is engaged. Light (D) comes on when front wheel drive is selected. Light (E) comes on when rear PTO is engaged. Light (F) comes on when program 1 of HMS II is selected. Light (G) comes on when program 2 of HMS II is selected. Light (H) indicates the selected PTO speed. Light (J) flashes to indicate a fault in the front-axle level control. Drive with extra care! Light (K) comes on when cruise control is selected (Eco mode) Light (L) comes on when cruise control is selected. NOTE: If PTO is already engaged when the engine is started, PTO will not operate. PTO must be disengaged and then engaged before it will start to turn. |
|
OURX986,000013F -19-25APR03-1/1 |
