Engaging Creeper-PowrQuad Plus Transmission

IMPORTANT: Avoid damaging transmission. Operate the creeper transmission in ranges A, B or C only. Do not operate creeper transmission with ground engaging equipment requiring high horsepower.

NOTE: Shifting force required to engage creeper can be high especially compared to force required on other mechanical shift levers. Shifter is not synchronized or spring assisted so tractor must be stopped. Shifing range shift lever to neutral can provide easier Creeper engagement.

Stop tractor and depress clutch pedal when engaging or disengaging creeper transmission.

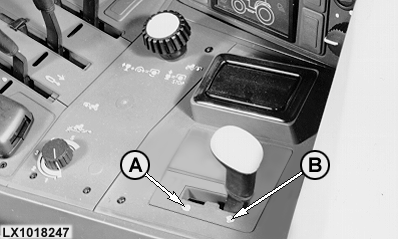

Select range A, B or C and move creeper lever forward for extremely slow speed operation.

A-Creeper Speed
B-High Speed

OURX986,000014E -19-11MAY05-1/1
