Adjusting Rate of Implement Drop

The rate at which the rockshaft and mounted implement will drop is controlled by turning control (A).

The rate-of-drop varies with the setting of this control and the weight of the mounted implement. The heavier the implement, the faster the rate-of-drop. The lighter the implement, the slower the rate-of-drop.

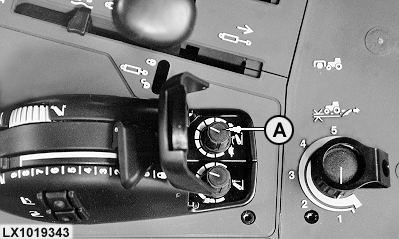

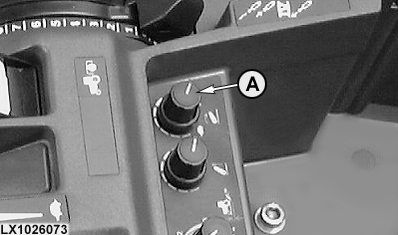

A-Rate-of-Drop Control Knob

OURX986,0000156 -19-28APR03-1/1
