Float Position

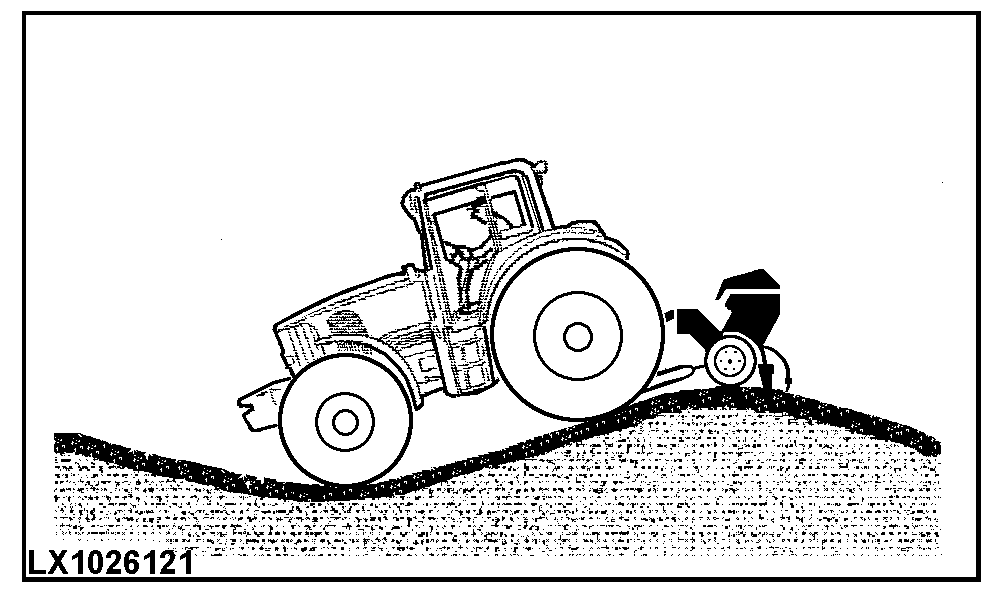

In "Float" position (for rockshaft-controlled implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. To obtain a "floating" action, set load/depth control (A) to "1" and move hitch control lever (B) as far as it will go to the front.

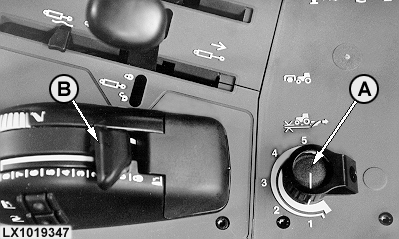

A-Load-Depth Control
B-Hitch Control Lever

OURX986,0000161 -19-28APR03-1/1
