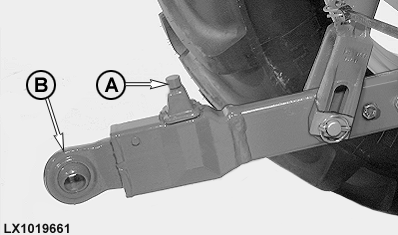

Telescopic Draft LinksThese draft links are intended for Category II and Category III N implements. To facilitate hitching of implements, extend draft links by lifting lock pin (A), then pulling telescoping ends (B) rearwards. After attaching and securing implements to draft links, reverse the tractor until the lock pins snap into place.
|
|
OURX986,0000162 -19-28APR03-1/1 |
