Lift Links, Category III Hitch

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

To level implement from side-to-side, adjust one link. Use handle (A) to adjust the link. After adjustment is completed, secure handle.

To adjust link on other side, proceed in the same way.

Length of links (B) must be kept within the following limits:

  • Minimum length 875 mm (34.4 in.)
  • Maximum length 1,035 mm (40.7 in.)

NOTE: The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

NOTE: A short lift link provides a short lifting height and maximum lifting force.

A long lift link provides a long lifting height and less lifting force.

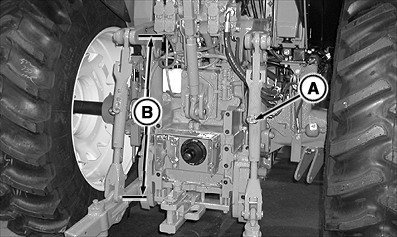

RXA0061903


A-Handle
B-Length of Lift Links
