Component Identification for MFWD Tread Settings ( Tractors with 26 inch Rims)

NOTE: For 7220 and 7320 models, graphic applies only for tractors with Serial Number starting with RW7320R002762.

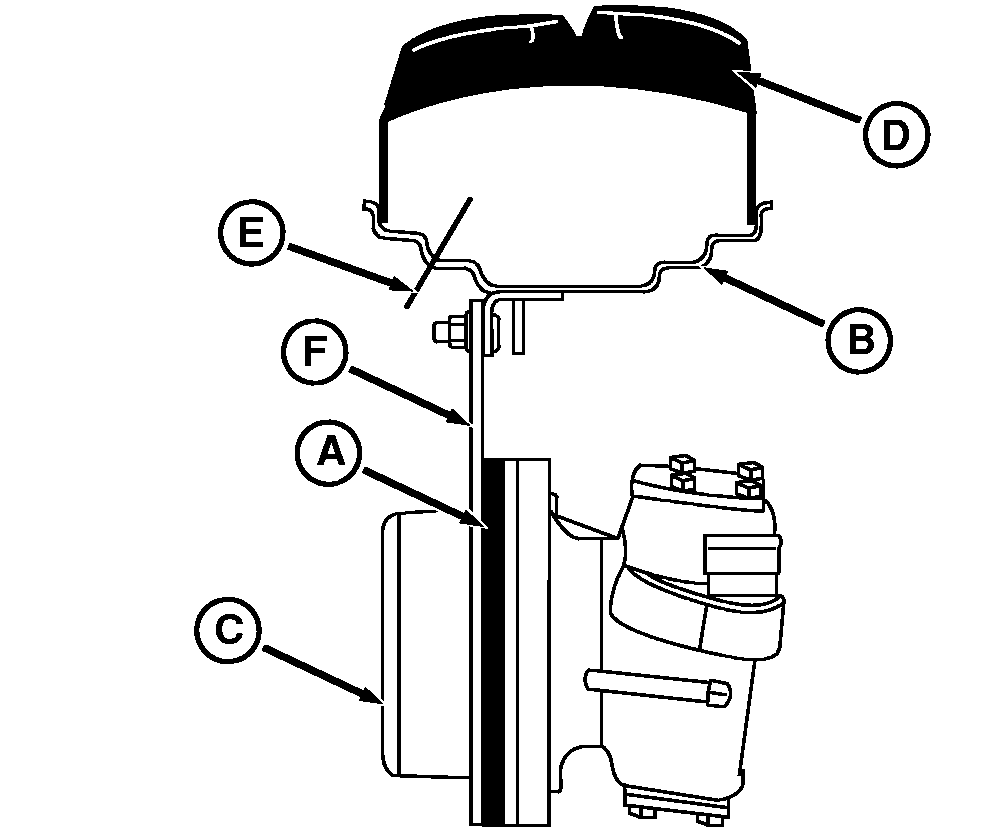

The illustration identifies the components pertaining to MFWD tread settings for tractors with 26 in. rims.


A-Spacer (Optional)
B-Rim
C-Hub
D-Tire
E-Valve Stem
F-Wheel Disk

RXA0063055

OURX986,0000170 -19-29APR03-1/1
