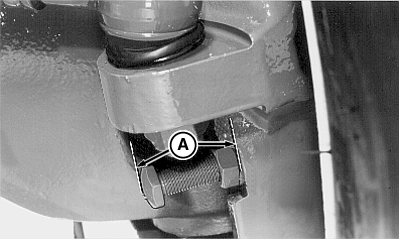

Steering Stop Positions - 7220 and 7320 MFWD Tractors (Early Models)Steering stop dimension (A) is expressed in millimeters . Tractor turning radius increases as steering stop dimension increases. Steering stop dimensions in parenthesis are for tractors without fenders. NOTE: Tractors with loaders may have different steering stop positions. Refer to the loader operator's manual. |
|
| Steering Stop Positions - 7220 and 7320 MFWD Tractors | ||||||||
|---|---|---|---|---|---|---|---|---|
| Tread Setting | 1510 mm (60 in.*) |
1611 mm (64 in.*) |
1713 mm (68 in.*) |
1814 mm (72 in.*) |
1916 mm (76 in.*) |
2018 mm (80 in.*) |
2119 mm (84 in.*) |
2235 mm (88 in.**) |
| Tire Size | ||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | |
| 13.6R28 | 75 (50) | 65 (35) | 50 (35) | 45 (35) | 35 (35) | 35 (35) | 35 (35) | 35 (35) |
| 380/85R28 14.9-28 14.9R28 |
85 (70) | 65 (55) | 50 (40) | 45 (35) | 35 (35) | 35 (35) | 35 (35) | 35 (35) |
| 380/85R30 14.9R30 |
85 (75) | 65 (60) | 50 (40) | 45 (35) | 35 (35) | 35 (35) | 35 (35) | 35 (35) |
| 16.9-26 16.9R26 |
(85) | 75 (65) | 65 (50) | 50 (35) | 40 (35) | 35 (35) | 35 (35) | 35 (35) |
| 420/85R28 16.9R28 |
(85) | 75 (65) | 65 (50) | 50 (35) | 40 (35) | 35 (35) | 35 (35) | 35 (35) |
| 290/95R34 320/85R34 |
85 (80) | 65 (55) | 45 (35) | 35 (35) | 35(35) | 35 (35) | 35 (35) | 35 (35) |
| 420/70R28 | (85) | 75 (65) | 65 (50) | 50 (35) | 40 (35) | 35 (35) | 35 (35) | 35 (35) |
| 480/70R28 | (85) | 80 (80) | 70 (60) | 55 (40) | 45 (35) | 40 (35) | 35 (35) | 35 (35) |
| * Spacers required for exact settings. See your John Deere Dealer. | ||||||||
| ** Spacers required for 88 in. setting. See your John Deere Dealer. | ||||||||
OURX986,0000173 -19-06MAY04-1/1 |
