Check MFWD Axle Housing Oil Level

Remove oil level plug (A). Oil should be level with plug bore. If necessary add oil. Tighten level plug to 150 N·m (110 lb-ft). Always use oil listed in "Fuel, Lubricants and Coolant" section.

NOTE: Replace oil in axle housing and final drives after the first 100 hours of operation. Then replace after every 1500 hours of operation or once every 2 years, whichever occurs first.

NOTE: The position of level plugs varies depending on axle type.

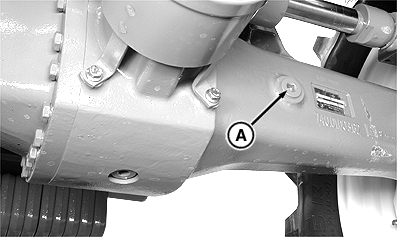

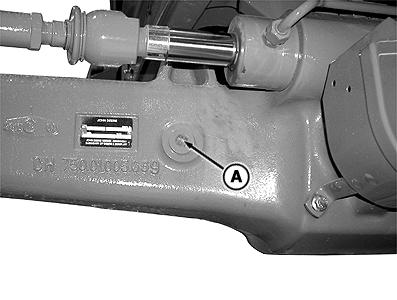

A-Oil Level Plug

OURX986,0000181 -19-21APR04-1/1
