Lubricate Three-Point Hitch and Rockshaft

Lubricate hitch and rockshaft grease fittings with several strokes of grease gun. Use John Deere multipurpose grease.


A-Rockshaft Lube Fitting
B-Lift Link Lube Fitting
C-Lift Link Lube Fitting

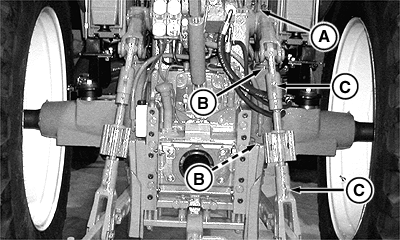

RXA0061749

Type II Hitch

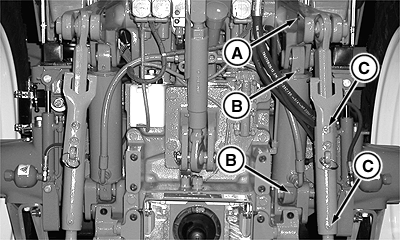

RXA0061748

Type III Hitch

OURX986,0000183 -19-29APR03-1/1
