Windshield Wiper and Washer System

Windshield wiper switch (A) has two or three positions:

  • 1 = Intermittent wipe
  • 2 = Slow wipe
  • 3 = Fast wipe

The windshield washer system is operated by means of switch (A) (push towards steering column).

Rear window wiper switch (B) has two positions:

  • 1 = Slow wipe
  • 2 = Fast wipe

The rear window washer system is operated by means of switch (B) (push the switch).

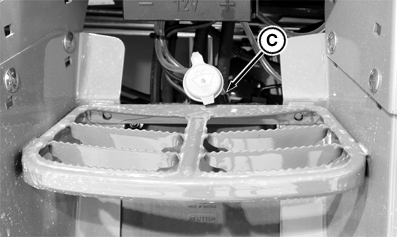

Add a suitable antifreeze solution to water in reservoir (C) if temperature is liable to drop below freezing point.


A-Windshield Wiper Switch
B-Rear Window Wiper Switch
C-Window Washer Reservoir

LX1017695
LX1024769
RXA0070138

OURX986,00001A6 -19-22AUG03-1/1
