The two main fuses are located under the engine hood, where they are secured to the hood frame just above the battery.

The fuses for the heating element and the electrical starting aid are on the right side of the engine block.

F13›80-amp battery circuit (main power supply)

F14›80-amp battery circuit (main power supply)

OURX986,00001AA -19-05SEP03-1/5

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a higher rating than the one already installed.

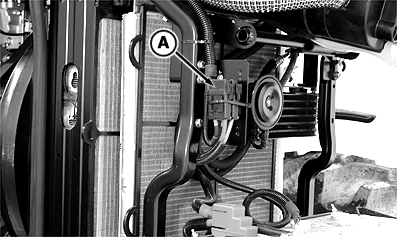

2. Take covers (A) off the two fuses.

3. Replace the fuses.

A-Fuse Covers

OURX986,00001AA -19-05SEP03-2/5

The fuses for the heating element and the electrical starting aid are on the right side of the engine block.

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a higher rating than the one already installed.

F09-70-amp heating element in electrical starting aid

CAUTION: Disconnect the battery ground cable (-).

Open the hood.

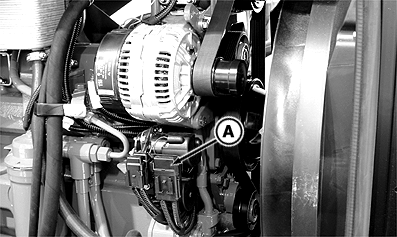

Take cover (A) off the fuse.

Replace the fuse.

A-Cover

OURX986,00001AA -19-05SEP03-3/5

The fuse for the electrical starting aid indicator light is on the right side of the engine block.

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a higher rating than the one already installed.

F11-10-amp indicator light in electrical starting aid

CAUTION: Disconnect the battery ground cable (-).

Open the hood.

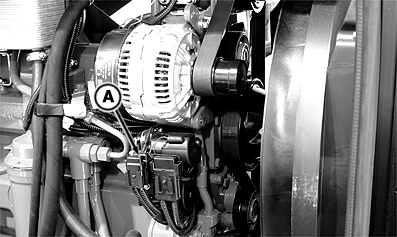

Take cover (A) off the fuse.

Replace the fuse.

A-Cover (fuse F11)

OURX986,00001AA -19-05SEP03-4/5

The injection pump fuse is located on the right side of the engine block.

IMPORTANT: To prevent unnecessary damage to the electrical system, never use a fuse with a higher rating than the one already installed.

F10-20-amp injection pump

CAUTION: Disconnect the battery ground cable (-).

Open the hood.

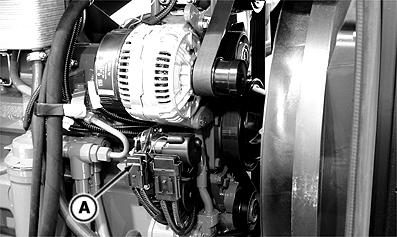

Take cover (A) off the fuse.

Replace the fuse.

A-Cover (fuse F10)
