Cruise Control - IVT

Maximum engine speed can be limited for PTO operation by means of cruise control (A). Move the hand throttle lever to full throttle, set selector knob to position 1 - 3 as required, then reduce engine speed by turning cruise control.

In the lowest setting, engine speed is limited to 1100 rpm. In the highest setting, the engine can run at maximum speed. Individual engine speed limits can be set between these two positions.

If no PTO operation is taking place, cruise control should be in the "Off" position.

Travel speed remains constant, regardless of engine speed limitation.

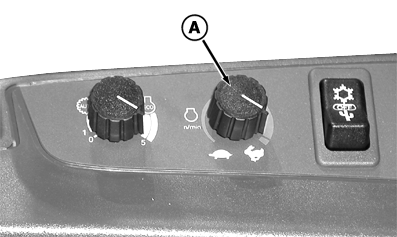

A-Cruise Control

OURX986,00001D3CONV1 -19-15DEC03-1/1
