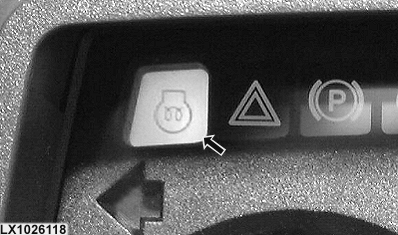

Engine Protection Indicator Lights-Engine protection: Malfunctions in the fuel system and engine are indicated by the flashing light (arrow), the red STOP light, the yellow CAUTION light and the blue INFO light. To prevent damage to the engine, an engine protection program functions as follows whenever a serious malfunction occurs: |
|
| Malfunction | Light | Adjustment |
|---|---|---|
| Fuel temperature too high | Caution | Engine power is reduced to 25% |
| Fuel temperature too high | Stop | Engine power is reduced to less than 25% |
| Engine oil pressure too low | Caution | Engine power is reduced to 80% |
| Engine oil pressure too low | Stop | Engine power is reduced to 40% |
| Fuel filter clogged | Stop | Engine speed is reduced to 1200 rpm |
| Coolant too hot | Info | Engine power is reduced to 80% |
| Coolant too hot | Stop | Engine power is reduced to 60% |
| Other malfunctions | Caution | Engine power is reduced to 50% |
RF30435,00000DB -19-20SEP04-1/1 |
