Change PowrQuad Plus Transmission/Hydraulic Oil Filter

NOTE: Replace transmission and hydraulic system filters after the first 100 hours of operation and every 750 hours thereafter.

1. Unscrew filter elements.

2. Coat sealing rings of new filter elements with grease or oil and screw-in filter elements.

Use original John Deere filter elements only!

IMPORTANT: Always replace both filters at the same time.

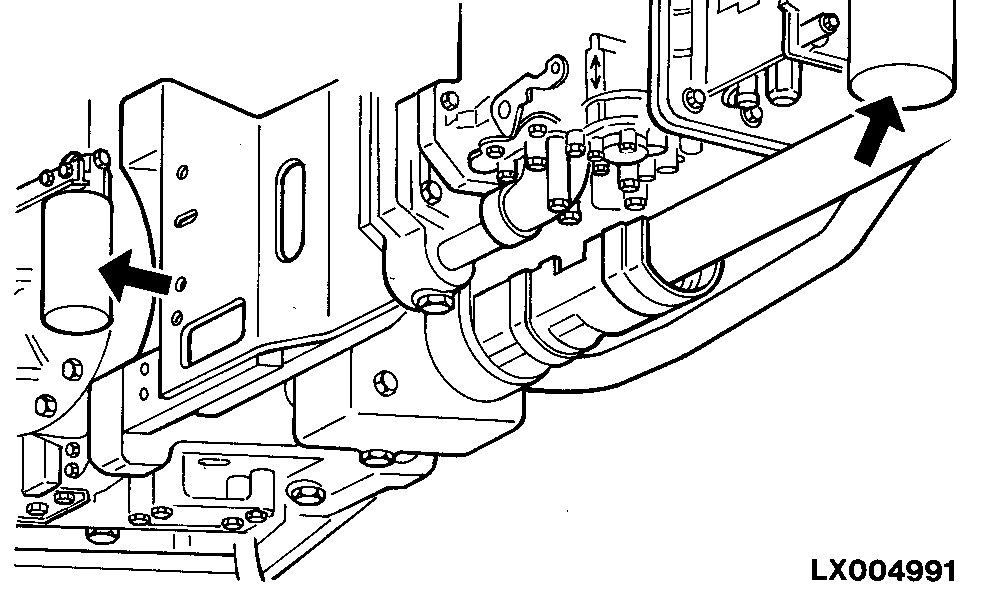

LX004991

RF30435,00000FB -19-18DEC01-1/1
