Change Front PTO Oil-If Equipped

Unscrew plugs (A) and (B) and drain the oil.

Screw in plug (A) again and tighten to specification. Add 3.5 liters (0.9 U.S. gal) of transmission/hydraulic oil to the PTO housing. Screw in plug (B) again and tighten to specification.

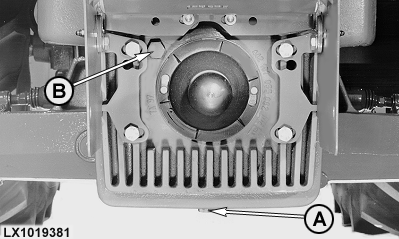

LX1019381


A-Plug
B-Plug

Item Measurement Specification

Drain Plugs

Torque 50 N·m
35 lb-ft

RF30435,0000104 -19-21DEC01-1/1
