Change Engine Primary Air Filter

IMPORTANT: Avoid engine damage. Replace primary filter after five cleanings or at recommended interval of 2 years/1500 hours. Replace filter if seal is damaged or if indicator light remains on after cleaning.

Never operate the engine without the primary air filter.

A glowing air cleaner indicator light indicates need to remove and clean the primary filter element.

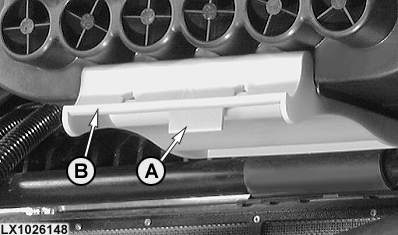

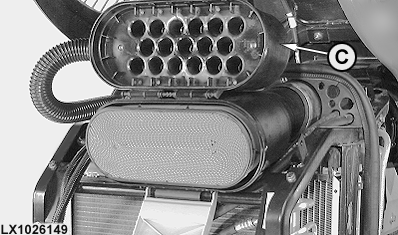

Open the hood, pull lug (A) forward and swing catch (B) down. Fold cover (C) up. Pull the primary filter out of the housing.

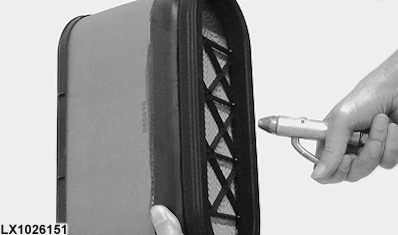

Tap filter to remove dust. Blow out dust with compressed air by inserting nozzle inside the filter and blowing from the inside of the filter to the outside.

Slide the cleaned (or new) primary air filter into the housing with the rubber seal first (arrows on decal pointing into the filter housing). Remainder of installation is opposite of removal.

IMPORTANT: Compressed air pressure should not exceed 90 psi (600 kPa) (6 bar).

A-Lug
B-Catch
C-Cover

RF30435,0000117 -19-10JAN02-1/1
