Installing Weights on Flanged Rear Axle

CAUTION: Avoid personal injury. Always position wheels so that retainer jaws are at the top when installing and removing weights. This prevents weights from falling when cap screw is removed.

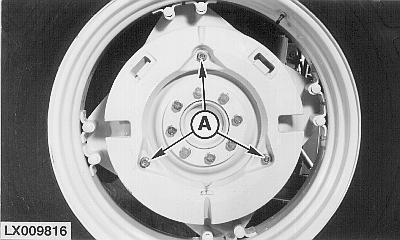

Attach first weight to wheel disk using three cap screws (A).

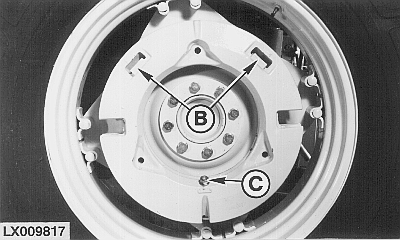

When installing further weights, position wheel so that retainer jaws (B) are at the top. Hang weight in retainer jaws and secure with a cap screw (C) at the bottom.

A-First Weight Cap Screws
B-Retainer Jaws
C-Final Weight Cap Screw
