Fuse and Relay Boxes-PowrQuad Plus Transmission
The fuse and relay boxes are located behind the operator's seat just below the rear window.
Press down latches (A) and lift off the trim panel.
|
|
|
|
RF30435,000011F -19-16JAN02-1/12
|
|
A-Relay box K01
B-Relay box K02
C-Fuse box F03
D-Fuse box F04
E-Fuse box F05
F-Fuse box F06
G-Fuse box F07
H-Relay box K08
I-Relay box K09
J-Relay box K10
|
|
|
|
RF30435,000011F -19-16JAN02-2/12
|
Relay Box K01
K01/1
Relay for accessories
K01/2
Relay for power supply to electronics
K01/3
Relay for accessories
K01/4
Acoustic alarm
|
|
|
|
RF30435,000011F -19-16JAN02-3/12
|
Relay Box K02
K02/1
Not used
K02/2
Alternator relay
K02/3
Not used
K02/4
Not used
K02/5
E-ICV power supply relay
K02/6
E-SCV 3 and E-SCV 4 power supply relay
K02/7
E-SCV 1 and E-SCV 2 power supply relay
|
|
|
|
RF30435,000011F -19-16JAN02-4/12
|
Fuse Box F03
IMPORTANT:
Prevent damage to the electrical system. Never use a fuse with a higher rating than the one already installed.
F03/01
10-amp, Basic Control Unit (power supply)
F03/02
10-amp, Basic Control Unit (BCU) (PTO, front-wheel drive, differential lock, HMS II, handbrake, wheel-speed sending unit, radar)
F03/03
20-amp, right turn signal, hazard warning lights
F03/04
20-amp, left turn signal
F03/05
Not used
F03/06
10-amp, brake light
F03/07
20-amp, brake switch
F03/08
10-amp, controller for suspended front axle (SFA) (battery voltage)
F03/09
Not used
F03/10
20-amp, power supply to E-ICV
F03/11
10-amp, power supply to E-SCV 3, E-SCV 4
F03/12
10-amp, power supply to E-SCV 1, E-SCV 2
F03/13
10-amp, SIC controller (battery voltage)
F03/14
10-amp, JDLink, GreenStar
F03/15
10-amp, SIC controller (power supply)
F03/16
20-amp, heated rear window
|
|
|
|
RF30435,000011F -19-16JAN02-5/12
|

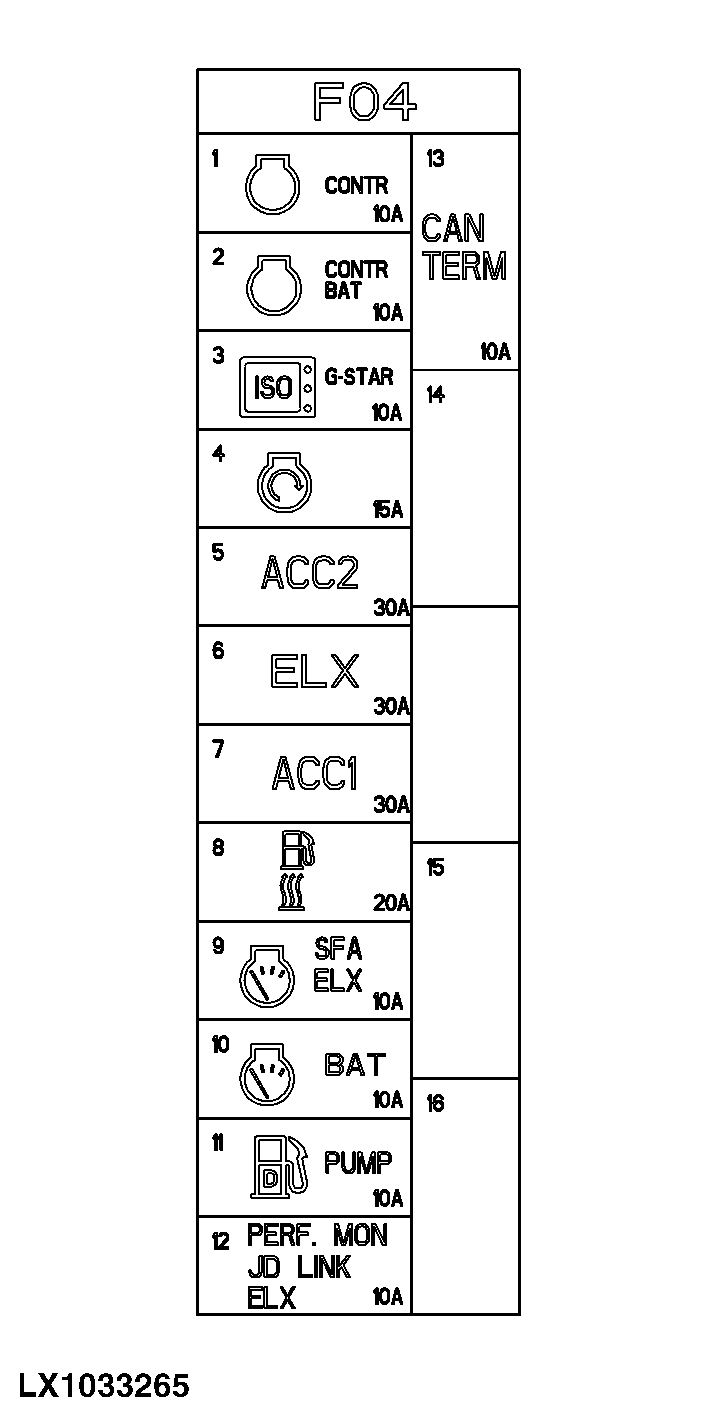

Fuse Box F04
IMPORTANT:
Prevent damage to the electrical system. Never use a fuse with a higher rating than the one already installed.
F04/01
10-amp, Engine Control Unit (power supply)
F04/02
10-amp, Engine Control Unit (battery voltage)
F04/03
10-amp, GreenStar (power supply)
F04/04
15-amp, main switch (BAT)
F04/05
30-amp, accessories
F04/06
30-amp, power supply for electronics
F04/07
30-amp, accessories
F04/08
20-amp, fuel preheater
F04/09
10-amp, basic informator, SFA controller (power supply)
F04/10
10-amp, basic informator (battery voltage)
F04/11
10-amp, fuel pump, injection pump shut-off valve
F04/12
10-amp, performance monitor PRF, JDLink (power supply)
F04/13
10-amp, CAN BUS terminator, service socket
F04/14
Not used
F04/15
Not used
F04/16
Not used
|
|
|
|
RF30435,000011F -19-16JAN02-6/12
|
Fuse Box F05
IMPORTANT:
Prevent damage to the electrical system. Never use a fuse with a higher rating than the one already installed.
F05/01
10-amp, air-conditioning system, relay for fan, ClimaTrak (power supply)
F05/02
10-amp, 2-pin plug for front loader
F05/03
Not used
F05/04
10-amp, EPC controller (power supply)
F05/05
10-amp, EPC controller (battery voltage)
F05/06
10-amp, EPC controller (gear selection)
F05/07
10-amp, accessories
F05/08
10-amp, windshield wiper and washer
F05/09
10-amp, rear window wiper and washer
F05/10
10-amp, electric rear-view mirrors, signal socket
F05/11
10-amp, GreenStar, TEC controller (power supply)
F05/12
10-amp, dome light, radio (battery voltage)
F05/13
20-amp, fan
F05/13
30-amp, ClimaTrak (fan)
F05/14
20-amp, fan
F05/14
10-amp, ClimaTrak (battery voltage)
F05/15
10-amp, 3-terminal socket, socket strip (power supply)
F05/16
30-amp, 3-terminal socket, socket strip (battery voltage)
|
|
|
|
RF30435,000011F -19-16JAN02-7/12
|
Fuse Box F06
IMPORTANT:
Prevent damage to the electrical system. Never use a fuse with a higher rating than the one already installed.
F06/01
10-amp, horn
F06/02
10-amp, cigarette lighter
F06/03
15-amp, operator's seat
F06/04
10-amp, radio (power supply)
F06/05
10-amp, shift console light, radio lighting
F06/06
10-amp, beacon light
F06/07
10-amp, front corner work light
F06/08
10-amp, work lights on fenders (rear-facing)
F06/09
15-amp, outer work light on rear of cab roof or Xenon (HID) work light on right rear of cab roof
F06/10
15-amp, inner work light on rear of cab roof or Xenon (HID) work light on left rear of cab roof
F06/11
10-amp, outer work light on front of cab roof
F06/12
10-amp, inner work light on front of cab roof
F06/13
Fuse tester
F06/14
10-amp, AutoTrac (power supply)
F06/15
10-amp, AutoTrac (battery voltage)
F06/16
15-amp, light switch (pin B)
|
|
|
|
RF30435,000011F -19-16JAN02-8/12
|

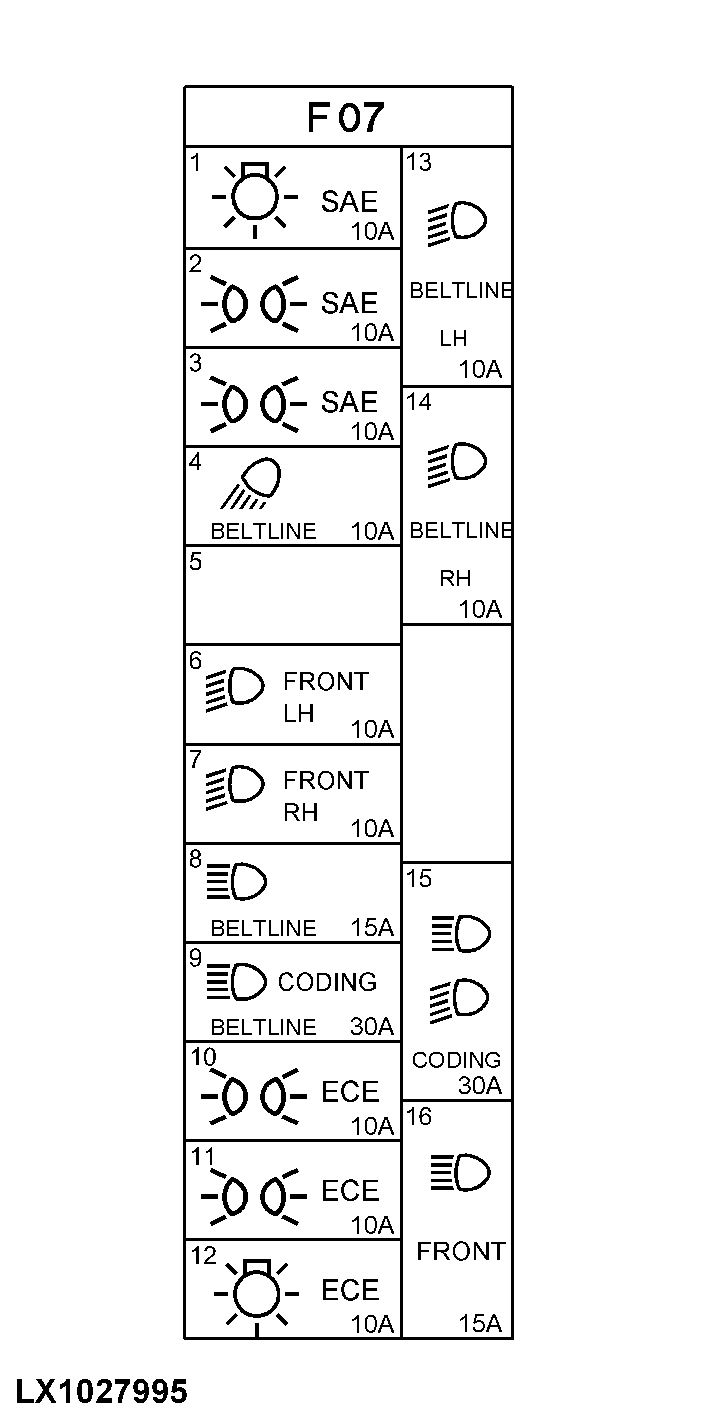

Fuse Box F07
IMPORTANT:
Prevent damage to the electrical system. Never use a fuse with a higher rating than the one already installed.
F07/01
Not used
F07/02
Not used
F07/03
Not used
F07/04
10-amp work lights on cab frame
F07/05
Not used
F07/06
10-amp dipped-beam headlight, left
F07/07
10-amp dipped-beam headlight, right
F07/08
15-amp full-beam
F07/09
30-amp lights on cab frame
F07/10
10-amp r.h. tail light, l.h. clearance light, license plate light
F07/11
10-amp l.h. tail light, r.h. clearance light
F07/12
10-amp headlights
F07/13
10-amp dipped-beam, left (lights on cab frame)
F07/14
10-amp dipped-beam, right (lights on cab frame)
F07/15
30-amp headlights
F07/16
15-amp full-beam headlights
|
|
|
|
RF30435,000011F -19-16JAN02-9/12
|
Relay Box K08
K08/1
Relay for full-beam headlights
K08/2
Relay for dipped-beam headlights
K08/3
Relay for lights on cab frame
K08/4
Relay for headlights and work lights on cab frame
K08/5
Relay for work lights on front of cab roof
K08/6
Relay for work lights on rear of cab roof
K08/7
Relay for work lights on front corners and fenders
|
|
|
|
RF30435,000011F -19-16JAN02-10/12
|

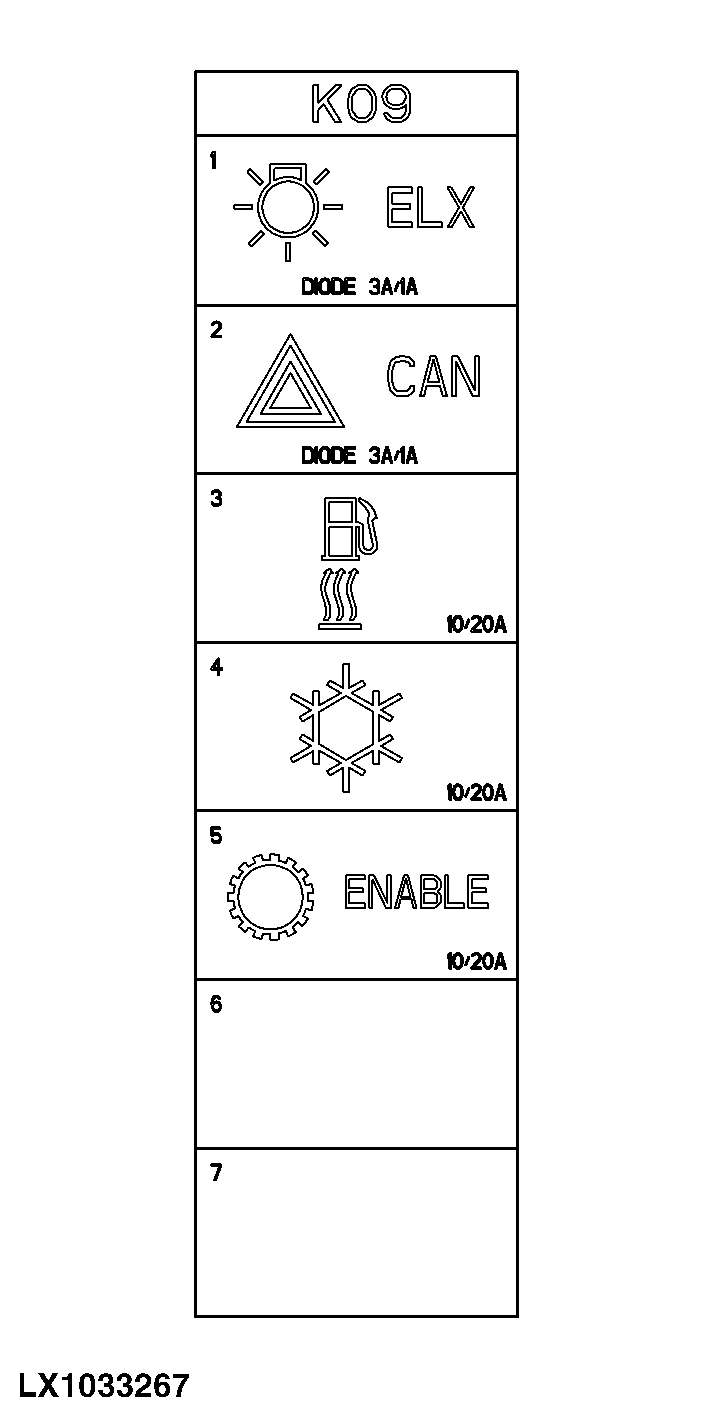

Relay Box K09
K09/1
3-amp, lighting diode
K09/1
1-amp, diode for power supply to electronics
K09/2
3-amp, CAN-BUS diode
K09/2
1-amp, CAN-BUS diode
K09/3
Fuel preheater relay
K09/4
Air-conditioning system relay
K09/5
Transmission enable relay
K09/6
Not used
K09/7
Not used
|
|
|
|
RF30435,000011F -19-16JAN02-11/12
|
Relay Box K10
K10/1
Fan relay
K10/2
ClimaTrak bridging plug
K10/3
Relay for 3-terminal socket, power outlet strip
K10/4
Plug for "come home" mode
|
|
|
|
RF30435,000011F -19-16JAN02-12/12
|
|
