Record MFWD Axle Serial Number

Serial number plate for 7220 and 7320 tractors is located on rear right-hand side.

For 7220 and 7320 tractors with Version "A" TLS axle, serial number plate is located directly behind hydraulic cylinder, on right-hand side.

For 7420 & 7520 tractors, serial number plate is located on left-hand side, at rear of axle.

*                                 *


RXA0062416

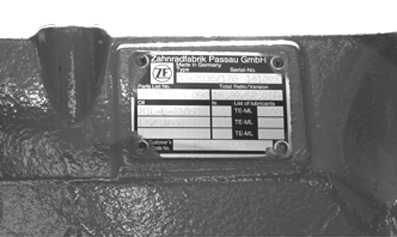

7220 & 7320, Version "A" Axle Serial Number

RXA0065259

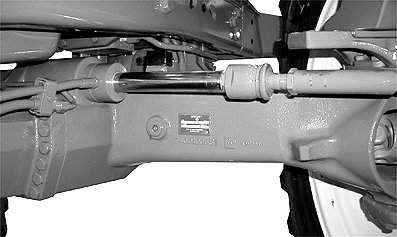

7220 & 7320, Version "B" Axle Serial Number

RXA0062417

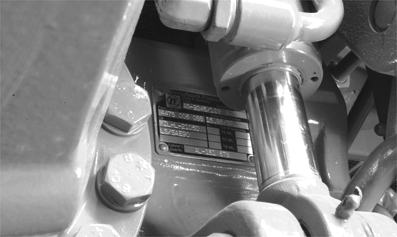

7220 & 7320, Version "A" TLS Axle Serial Number

RXA0062418

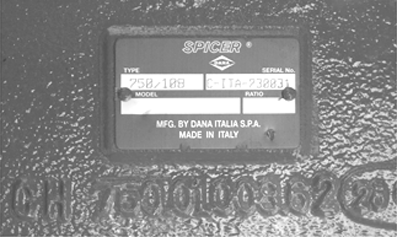

7420 & 7520 Tractors MFWD Axle Serial Number

RF30435,0000139 -19-25SEP02-1/1
