Change Fuel Filters

1. Unfasten filter retaining ring (A) and remove filter body (C).

2. Remove water separator (B) from pre-filter and install it on new pre-filter.

3. Attach new filter and pre-filter. Marks on each filter must be aligned with those on the housing.

4. Tighten each retaining ring until it clicks into place.

5. Turn key switch to RUN position. Allow fuel pump to operate approximately 20 seconds.

RXA0070306

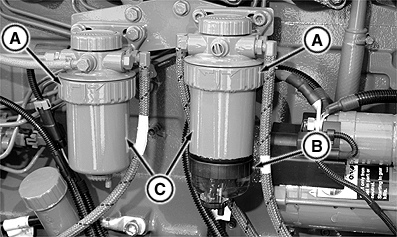

Changing fuel filter (PQ Transmission shown)


A-Retaining Ring
B-Water Separator
C-Filter Body

RF30435,000013A -19-28JAN02-1/1
