Bleed Fuel System

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Every time the fuel system is been opened up for service (lines disconnected or filters removed), it will be necessary to bleed air from the system.

This fuel system can only be bled by the electronic fuel pump.

RF30435,000013C -19-23MAY05-1/2

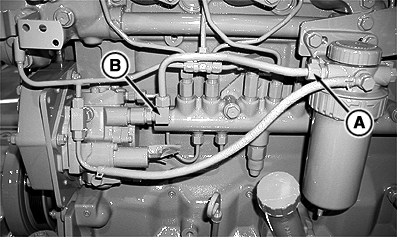

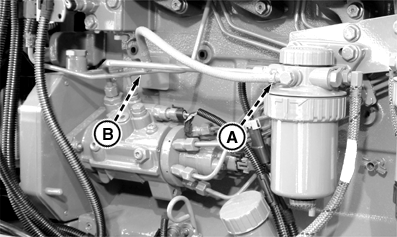

The bleed is automatically performed by a small orifice (A) inside the filter base connected to the overflow valve (B) on injection pump.

2. Allow 40 seconds for pump to complete priming.

A-Bleed Orifice
B-Overflow Valve

RF30435,000013C -19-23MAY05-2/2
