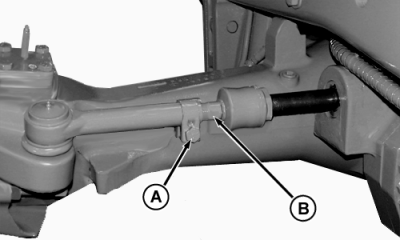

MFWD Toe-In Adjustment - Hi-Crop Tractor1. Loosen clamp (A) on tie rod.2. Rotate steering cylinder rod (B) as necessary to obtain toe-in not to exceed 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change. 3. Tighten each nut to 75 N·m (55 lb-ft). NOTE: Bolt threads should point to front of tractor.
|
|
