Rear Tread Settings for Single 8-Position Wheels - Hi-Crop Tractor - Flanged Axle
NOTE:
Tread settings are measured at bottom centerline of tire.

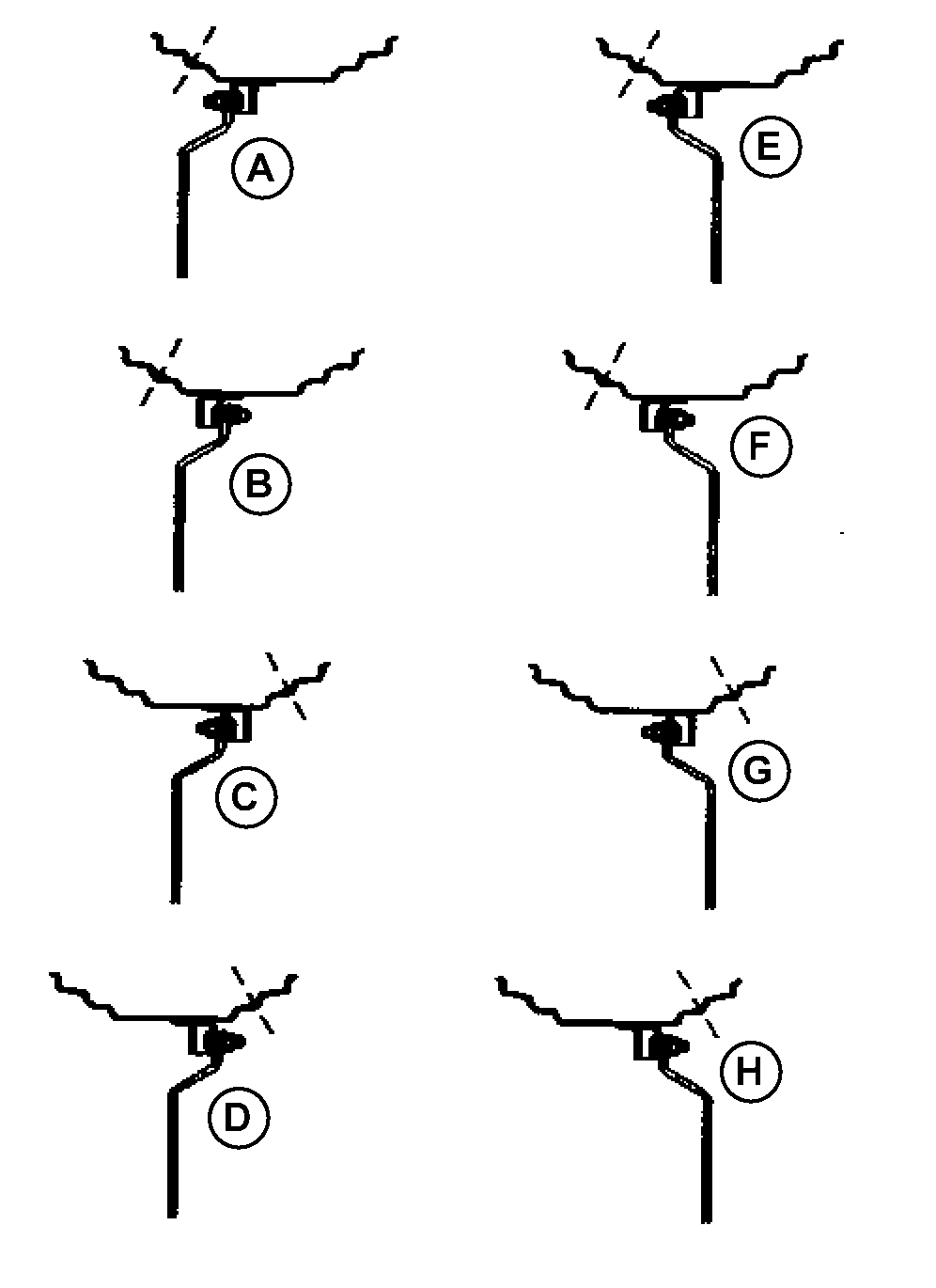

Use diagram as a guide to adjust rim and disk to a desired tread setting.
| 18.4 Tires |
| |
Valve Stem Out |
Valve Stem In |
| |
|
|
| A- |
1524 mm (60 in.) |
- |
| B- |
1626 mm (64 in.) a |
- |
| C- |
- |
1727 mm (68 in.) |
| D- |
- |
1829 mm (72 in.) |
| E- |
1930 mm (76 in.) |
- |
| F- |
2032 mm (80 in.) |
- |
| G- |
- |
2134 mm (84 in.) |
| H- |
- |
2235 mm (88 in.) |
| aTread spacer kit available from your John Deere Dealer to obtain 1676 mm (66 in.) tread setting |
|
