Towing-All Wheels On Ground

IMPORTANT: Never attempt to start tractor by towing.

Avoid damaging the transmission and hydraulic systems. Operate engine above 1250 rpm to provide adequate system lubrication. All pressure indicator lights must be off.

Do not exceed 8 km/h (5 mph) when towing the tractor.

Park brake has to be released before towing. Special tools are needed to release park brake. See your John Deere Dealer.

Check transmission/axle oil level sight glass (A) and hydraulic oil level (B). (See Lubrication Section.)

Attach tow bar to drawbar for towing.

If tractor starts, shift transmission to NEUTRAL position (C).

Steer and brake the tractor while being towed.

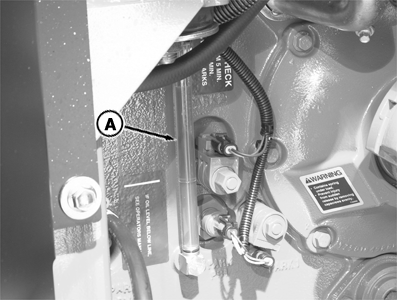

A-Transmission/Axle Oil Level Sight Glass

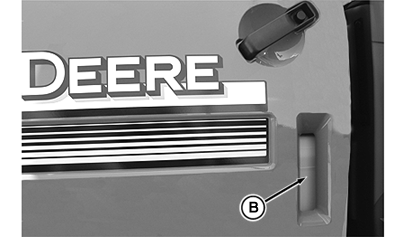

B-Hydraulic Oil Level

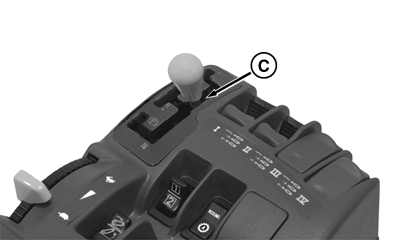

C-Neutral Position

RW29387,000059F -19-08JAN04-1/1
