Operating Cab Heat, Defrost and Air Conditioning-Standard Equipment

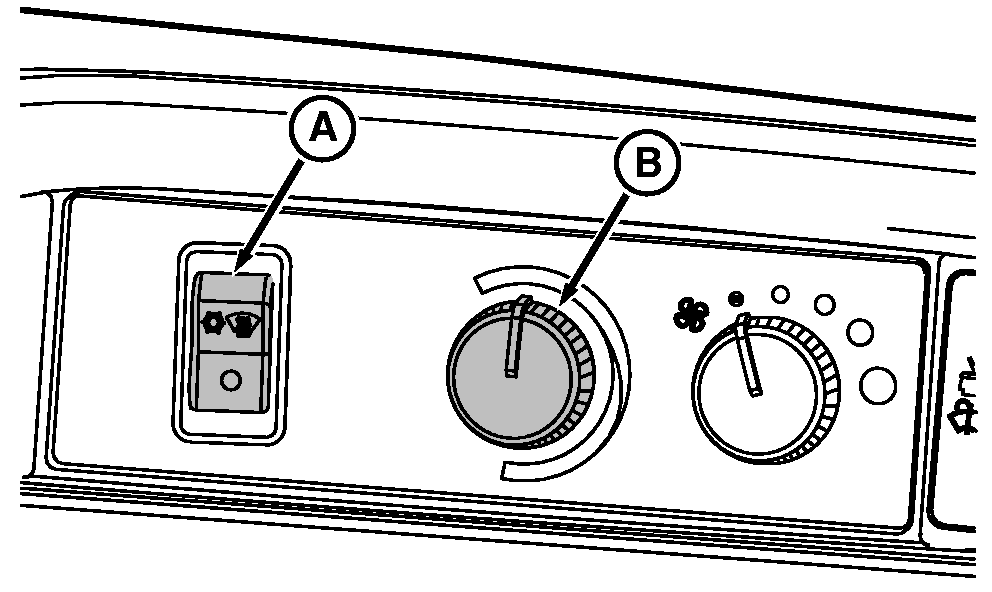

Push air conditioning switch (A) ON for cab cooling or defrosting. Leave switch OFF for heat.

Turn temperature control knob (B) to red zone for heating or blue zone for cooling.

A-Air Conditioning Switch
B-Temperature Control Knob

BB92646,000006D -19-09AUG05-1/4

IMPORTANT: If system is not cooling properly, turn air conditioning switch off to avoid possible compressor damage.

NOTE: Purge position is used for rapid cab cool down.

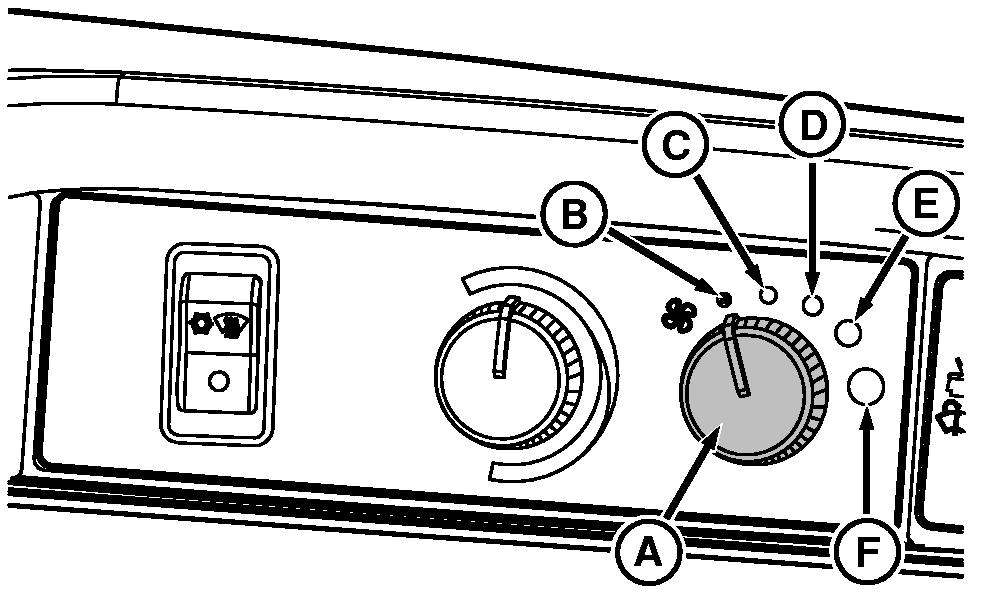

Turn fan speed control knob (A) to desired setting (B-F).

A-Fan Control Knob
B-Off
C-Low Speed
D-Medium Speed
E-High Speed
F-Purge

BB92646,000006D -19-09AUG05-2/4

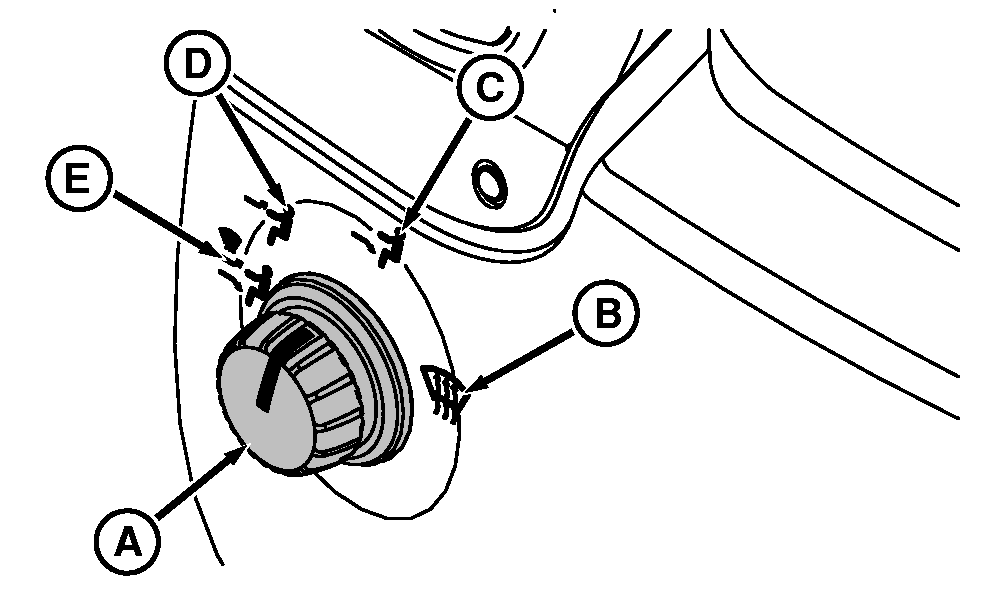

Turn air flow direction knob (A) for desired outlet (B-E).

A-Air Flow Direction Knob
B-Windshield
C-Floor
D-Front Console Vent
E-All

BB92646,000006D -19-09AUG05-3/4

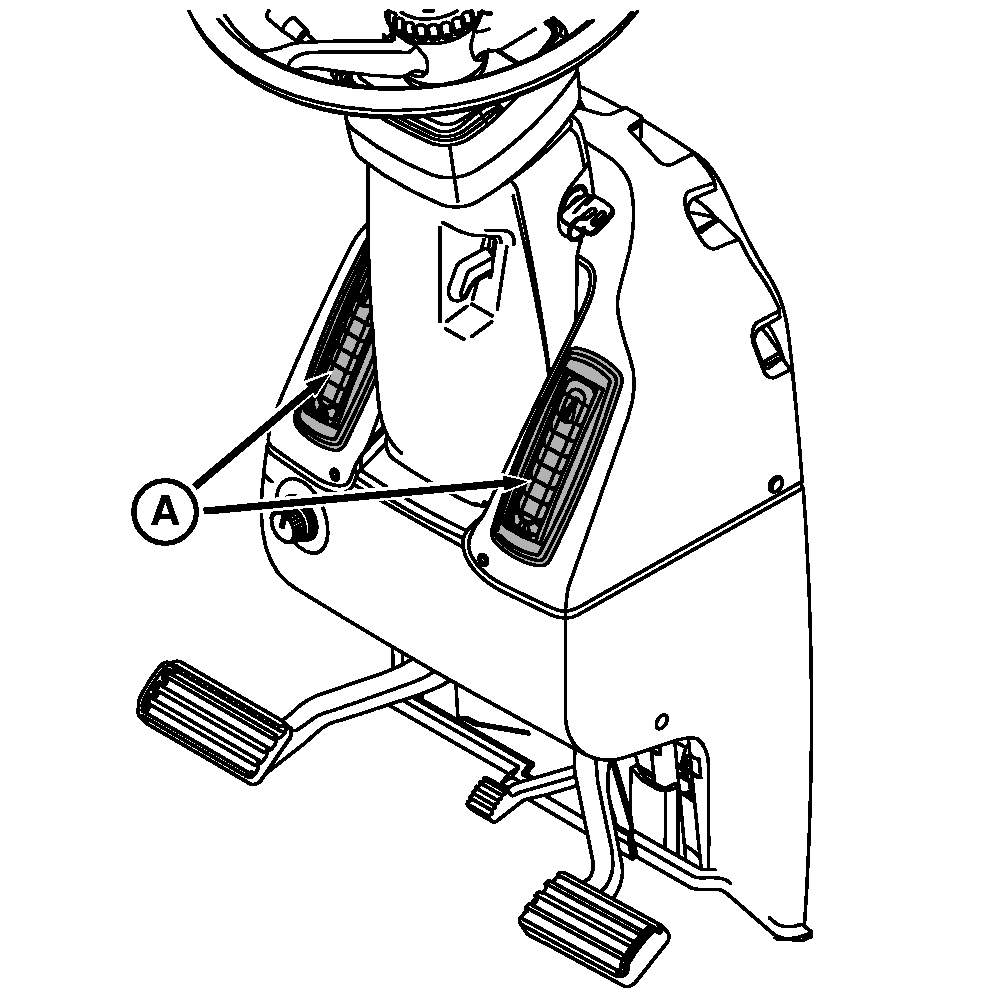

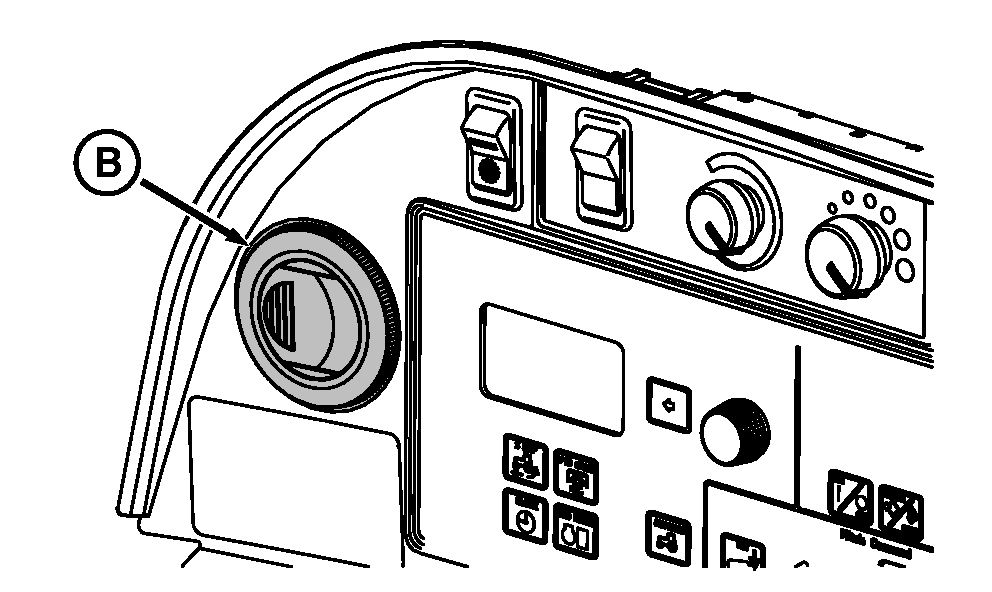

Louvers (A and B) in the front and side consoles are used to direct air flow to the windows for defrosting or at the operator for heating and cooling.

A-Front Console Louvers
B-Side Console Louver

BB92646,000006D -19-09AUG05-4/4
