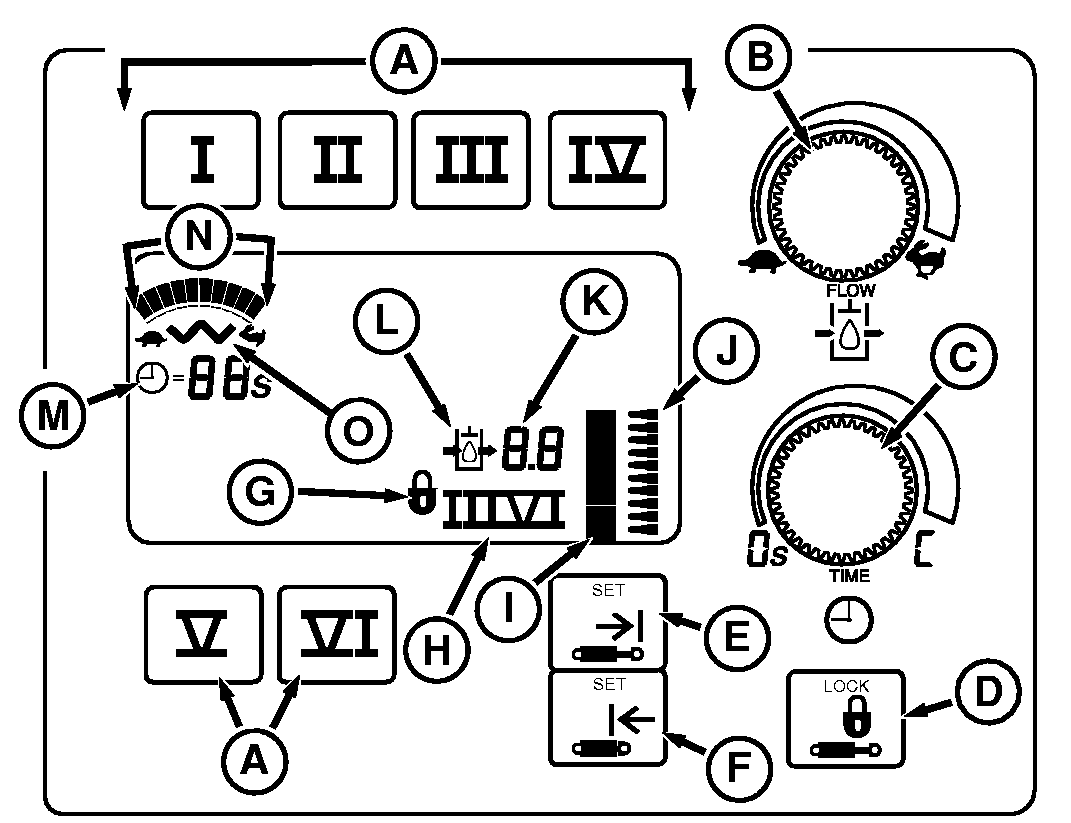

A-SCV Selector Switches1
B-Flow Rate Adjustment Knob
C-Time Adjustment Knob
D-Lock Switch
|
E-Extend Set Switch
F-Retract Set Switch
G-Lock Indicator
H-SCV Indicator
|
I- Set Point Indicator (EHDC)
J- Position Pointer Indicator (EHDC)
K-Flow Rate Indicator
|
L-Hydraulic Flow Indicator
M-Time Indicator
N-Flow Indicator
O-Float Indicator
|
