Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab using M10 cap screws.

  Mounting Locations

  A-Corner Post Mounting Locations
  B-Rear Cab Post Mounting Locations
  C-Cap Screws


RXA0057158

Corner Post

RW26659

Rear Cab Post

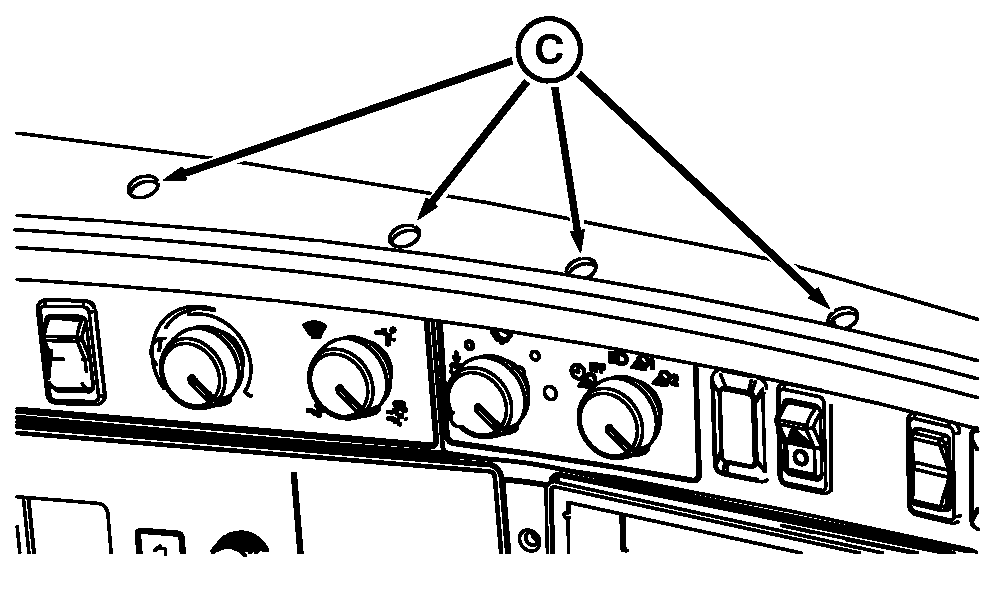

RXA0083187

Side Console

BB92646,0000072 -19-11AUG05-1/1
