Adjusting CommandARM Position

causym CAUTION: Be careful when raising or lowering CommandARM console. Fingers could get pinched between mounting plates.

1. Support console and loosen knob (A).

2. Move console/armrest to desired position:

  • Raise console/armrest-Forward and up
  • Lower console/armrest-Rearward and down

3. Tighten knob (A).

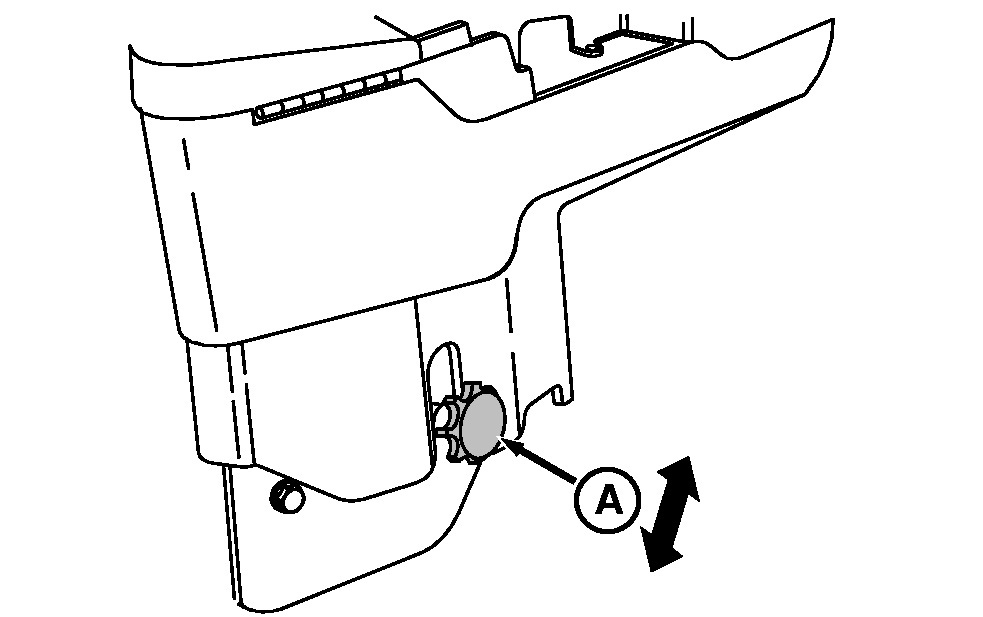

RXA0068760

Right-Hand Side Shown


A-Armrest Control Knob
